MPN
PS2501-1-A
Manufacturer
Description

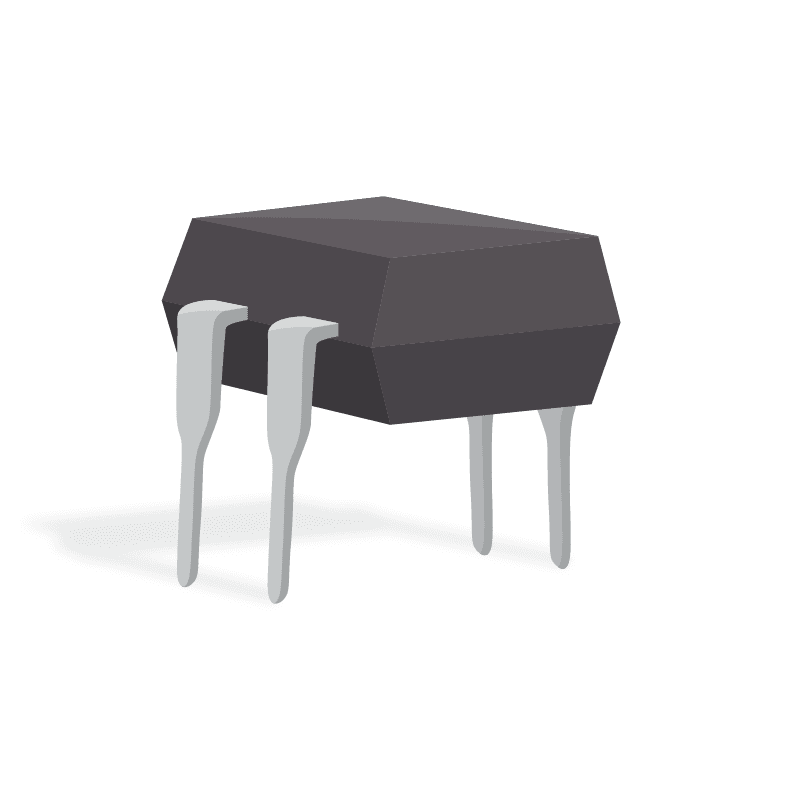

Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin PDIP Magazine
MPN
PS2501-1-A
Total Available Quantity
-
Specifications
Mount
Through Hole
Case/Package
DIP
Number of Pins
4
Forward Voltage
1.17V
Forward Current
10mA
Reverse Voltage
6V
Isolation Voltage
5kV
Rise Time
3µs
Fall Time
5µs
Output Voltage
80V
Current Transfer Ratio
300%
Number of Channels
1
Min Operating Temperature
-55°C
Max Operating Temperature
100°C
RoHS
Compliant
Ambient Temperature Range High
100°C
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
80V
Height
4.55mm
Lead Free
Lead Free
Max Collector Current
50mA
Max Output Voltage
80V
Max Power Dissipation
150mW
Number of Circuits
1
Number of Elements
1
Output Current per Channel
50mA
Radiation Hardening
No
Reverse Breakdown Voltage
6V
Reverse Voltage (DC)
6V
