MPN
ACF451832-333-TD01
Manufacturer
Description

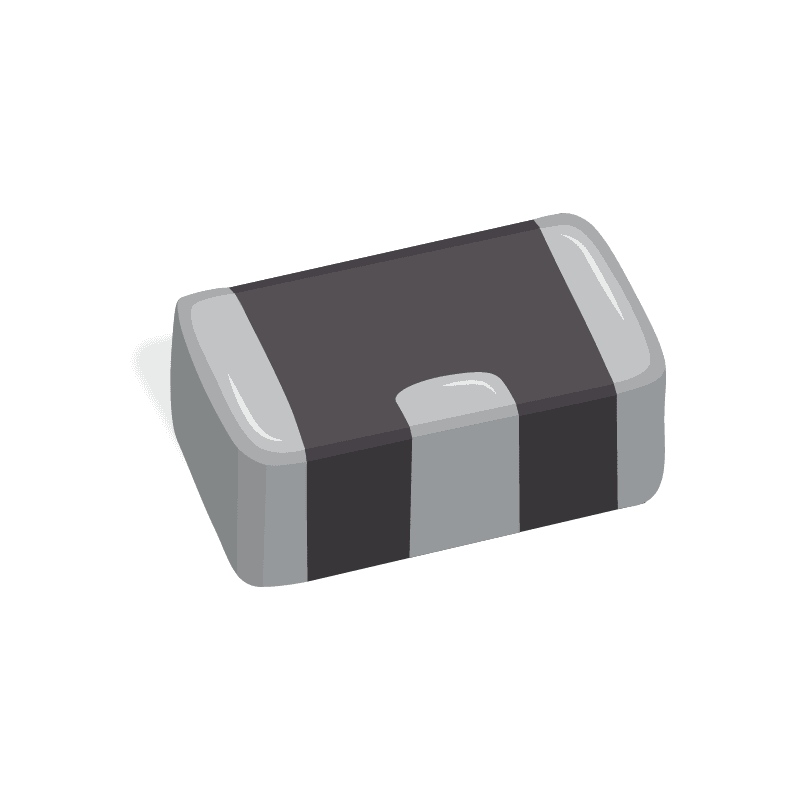

LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel - 300 mA 1812 (4532 Metric), 3 PC Pad
MPN
ACF451832-333-TD01
Total Available Quantity
1,000
Lead time to Ship
In Stock
Ships from
SINGAPORE
Country of Origin
Japan
Date Code
23+
Specifications
Lifecycle Status
EOL
Mount
Surface Mount
Case/Package
1812
Packaging
Tape & Reel
DC Resistance (DCR)
150mO
Current Rating
300mA
Voltage Rating
20V
Test Frequency
12MHz
Min Operating Temperature
-25°C
Max Operating Temperature
85°C
RoHS
Compliant
Case Code (Imperial)
1812
Case Code (Metric)
4532
Current
300mA
Depth
1.8mm
ESD Protection
No
Frequency
60MHz
Height
2.0066mm
Insulation Resistance
1GO
Lead Free
Lead Free
Length
4.5mm
Max Current Rating
300mA
Max DC Current
300mA
Max Length
4.9mm
Max Voltage Rating (DC)
50V
Max Width
2mm
Min Length
4.1mm
Min Width
1.6mm
Number of Channels
1
Radiation Hardening
No
REACH SVHC
No
Resistance
150mO
Shielding
Unshielded
Termination
Flat
Voltage Rating (DC)
50V
Width
3.2mm
MPN
ACF451832-333-TD01
Total Available Quantity
1,000
Lead time to Ship
In Stock
Ships from
SINGAPORE
Country of Origin
Japan
Date Code
23+
