MPN
PIC18F14K22-I/P
Manufacturer
Description

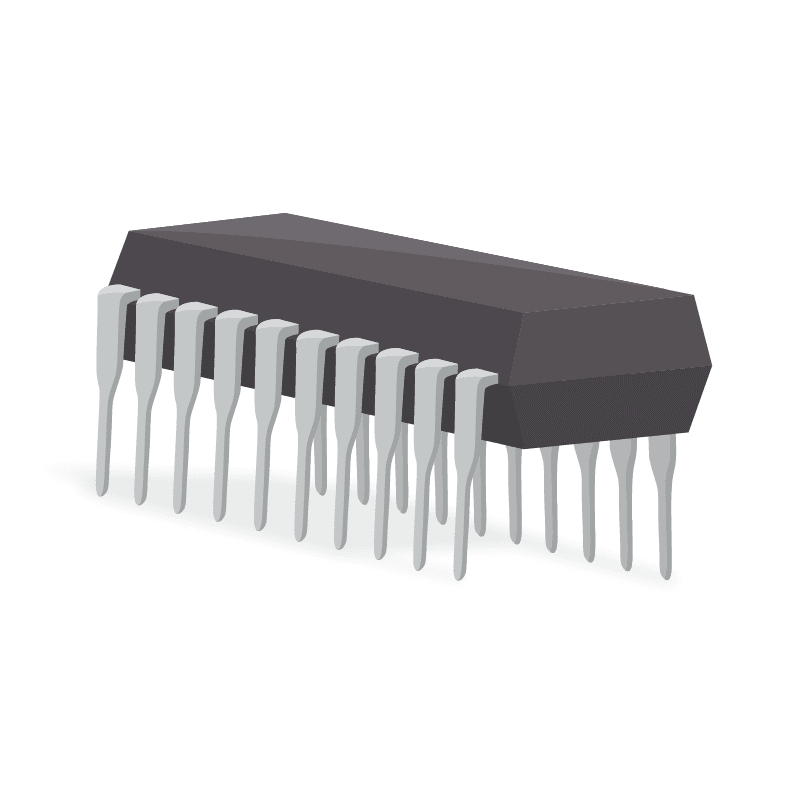

PIC series Microcontroller IC 8-Bit 64MHz 16KB (8K x 16) FLASH 20-PDIP
MPN
PIC18F14K22-I/P
Total Available Quantity
-
Main Attributes
Lifecycle Status
Production
Specifications
Mount
Through Hole
Case/Package
PDIP
Number of Pins
20
Core Architecture
PIC
Data Bus Width
8b
Frequency
64MHz
Max Frequency
64MHz
Density
128kb
Number of I/Os
18
Memory Size
16kB
Memory Type
FLASH
RAM Size
512B
Min Supply Voltage
1.8V
Max Supply Voltage
5.5V
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
RoHS
Compliant
Height
4.953mm
Interface
I2C, LIN, SPI, UART, USART
Lead Free
Lead Free
Length
26.92mm
Max Power Dissipation
800mW
Number of A/D Converters
1
Number of ADC Channels
12
Number of Bits
8
Number of I2C Channels
1
Number of Programmable I/O
17
Number of PWM Channels
1
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT
Radiation Hardening
No
REACH SVHC
No
Schedule B
8542310000
Termination
Through Hole
Watchdog Timer
Yes
Width
7.112mm
