MPN
FTR-B3GA4.5Z-B10
Manufacturer
Description

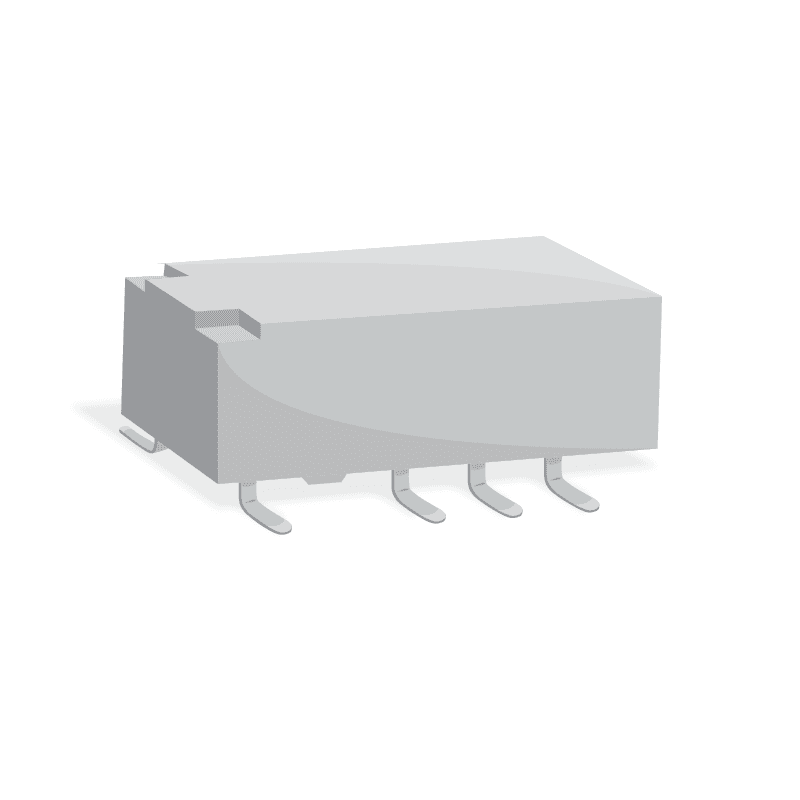

Electromechanical Relay 4.5VDC 145Ohm 2A DPDT (( 10.6mm 8.2mm 5.45mm)) SMD Signal Relay
MPN
FTR-B3GA4.5Z-B10
Total Available Quantity
-
Main Attributes
Packaging
Tape & Reel
Specifications
Mount
Surface Mount
Number of Pins
8
Coil Current
31.03mA
Coil Resistance
145O
Coil Power
140mW
Voltage Rating (AC)
250V
Operate Time
3ms
Contact Material
Gold, Silver
Power Consumption
140mW
Throw Configuration
DPDT
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
RoHS
Compliant
Coil Type
Non-Latching
Coil Voltage (AC)
4.5V
Coil Voltage (DC)
4.5V
Contact Current Rating
2A
Contact Resistance
75mO
Depth
7.2mm
Height
4.4mm
Length
10.6mm
Termination
PCB, Solder
MPN
FTR-B3GA4.5Z-B10
Total Available Quantity
-
