MPN
PSMN1R2-30YLC,115
Manufacturer
Description

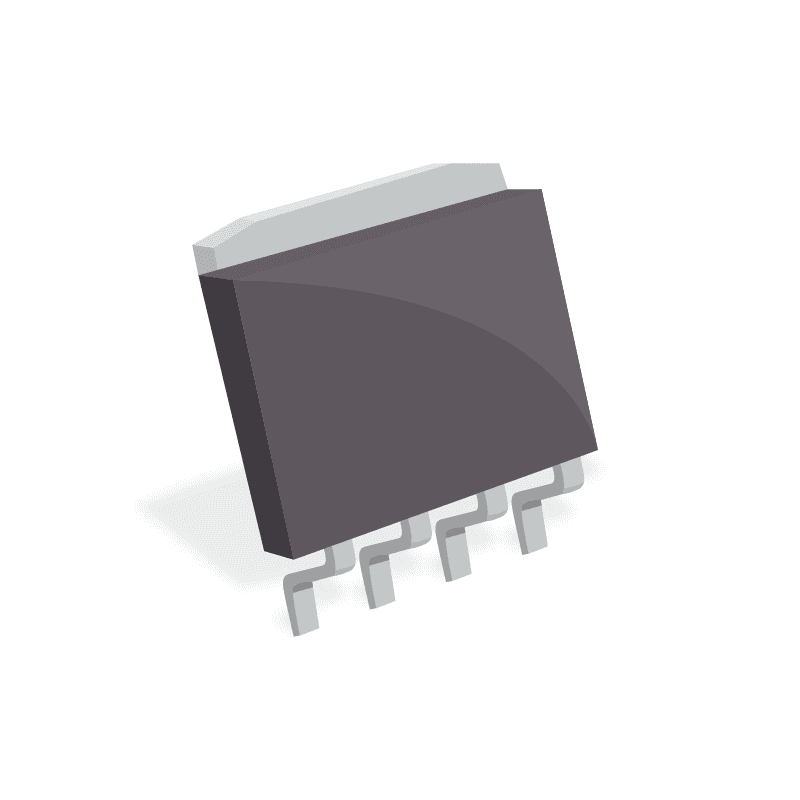

PSMN1R2-30YLC - N-channel 30 V 1.25mΩ logic level MOSFET in LFPAK using NextPower technology
MPN
PSMN1R2-30YLC,115
Total Available Quantity
-
Main Attributes
Lifecycle Status
Production
Packaging
Tape & Reel
Specifications
Case/Package
SOT
Number of Pins
4
Gate to Source Voltage (Vgs)
20V
Drain to Source Voltage (Vdss)
30V
Drain to Source Breakdown Voltage
30V
Continuous Drain Current (ID)
100A
Drain to Source Resistance
1.25mO
Power Dissipation
215W
Input Capacitance
5.093nF
Min Operating Temperature
-55°C
Max Operating Temperature
175°C
RoHS
Compliant
Fall Time
39ns
Lead Free
Lead Free
Manufacturer Lifecycle Status
Production
Max Dual Supply Voltage
30V
Max Power Dissipation
215W
Number of Elements
1
Radiation Hardening
No
Rds On Max
1.25mO
Rise Time
60ns
Schedule B
8541290080
Turn-Off Delay Time
75ns
Turn-On Delay Time
36ns
MPN
PSMN1R2-30YLC,115
