MPN
EXB-38V101JV
Manufacturer
Description

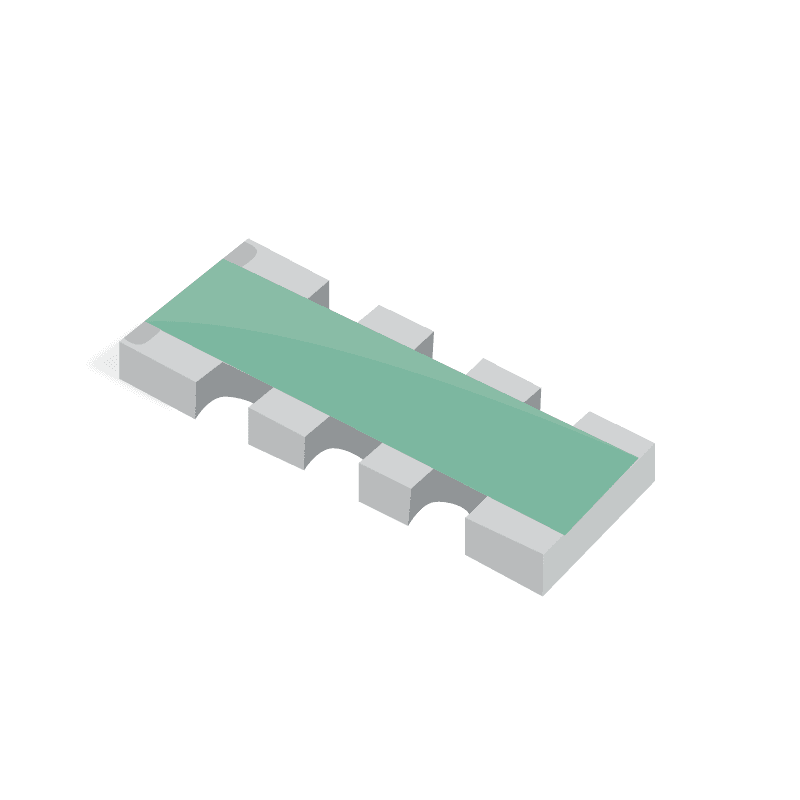

Res Thick Film Array 100 Ohm 5% 200ppm/ C ISOL Molded 8-Pin 1206(4 X 0603) Convex SMD Punched Carrier T/R
MPN
EXB-38V101JV
Total Available Quantity
-
Specifications
Lifecycle Status
Production
Mount
Surface Mount
Case/Package
1206
Packaging
Tape & Reel
Resistance
100Ω
Number of Pins
8
Number of Resistors
4
Tolerance
5%
Temperature Coefficient
200ppm/°C
Power Per Element
62.5mW
Voltage Rating
50V
Min Operating Temperature
-55°C
Max Operating Temperature
125°C
RoHS
Compliant
Case Code (Imperial)
1206
Case Code (Metric)
3216
Circuit Type
Isolated
Composition
Thick Film
Contact Plating
Tin
Depth
1.6mm
Height
600µm
Lead Free
Lead Free
Length
3.2mm
Military Standard
Not
Number of Contacts
8
Number of Elements
4
Number of Terminals
8
Radiation Hardening
No
REACH SVHC
No
Terminal Pitch
800µm
Termination
Convex
Voltage Rating (DC)
100V
Width
1.6002mm
