MPN
MIC5821YN
Manufacturer
Description

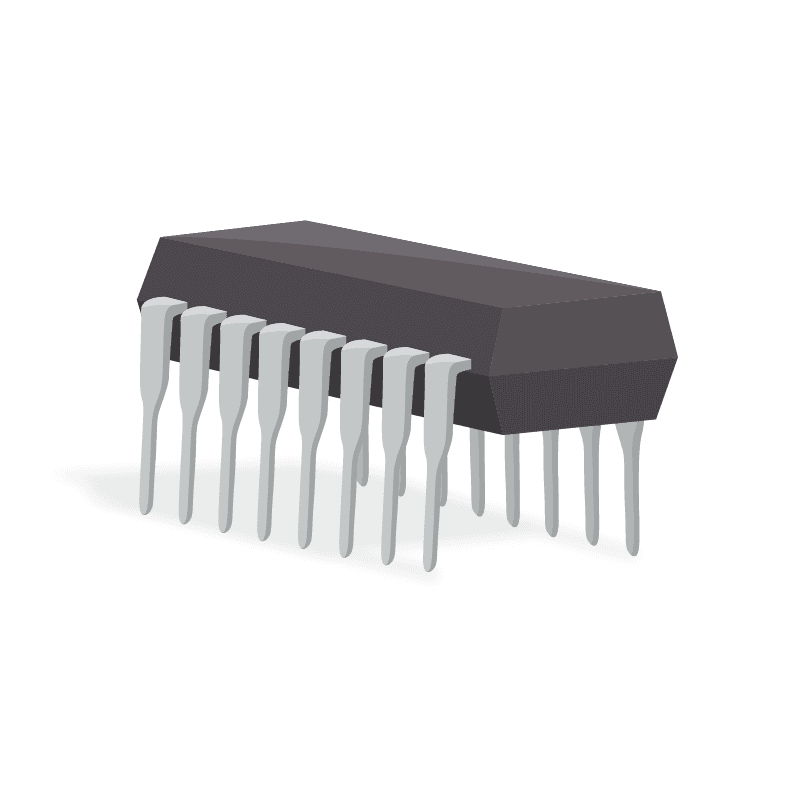

MIC5821 Series 15 V 3.3 MHz 8-Bit Serial-Input Latched Driver - PDIP-16
MPN
MIC5821YN
Total Available Quantity
-
Specifications
Ambient Temperature Range High
85°C
Case/Package
PDIP
Direction
Unidirectional
Height
3.3mm
Interface
Serial
Lead Free
Lead Free
Length
19.81mm
Lifecycle Status
Production
Logic Function
Latch, Shift Register
Max Operating Temperature
85°C
Max Output Current
500mA
Max Supply Voltage
12V
Min Operating Temperature
-40°C
Min Supply Voltage
3.5V
Mount
Through Hole
Nominal Supply Current
4.5mA
Number of Bits
8
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Number of Input Lines
1
Number of Inputs
1
Number of Output Lines
9
Number of Outputs
8
Number of Pins
16
Output Configuration
Low Side
Output Current
500mA
Output Voltage
50V
Packaging
Bulk
Polarity
Non-Inverting
Radiation Hardening
No
REACH SVHC
No
RoHS
Compliant
Schedule B
8542390000
Width
6.35mm
