MPN

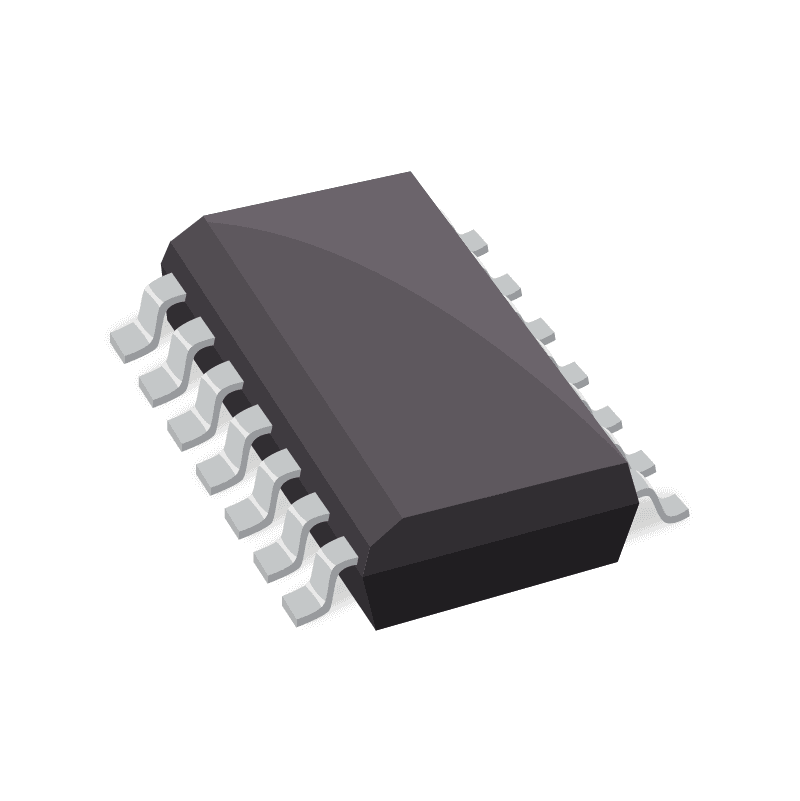

PIC16F506-I/SL
Manufacturer
Description
MCU 8-bit PIC16 PIC RISC 1.5KB Flash 2.5V/3.3V/5V 14-Pin SOIC N Tube - Rail/Tube
MPN
PIC16F506-I/SL
Total Available Quantity
-
Main Attributes
Lifecycle Status
Production
Specifications
Case/Package
SOIC
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
1.5mm
Lead Free
Lead Free
Length
8.65mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
700mW
Max Supply Voltage
5.5V
Memory Size
1.5kB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of A/D Converters
1
Number of ADC Channels
3
Number of Bits
8
Number of I/Os
12
Number of Pins
14
Number of Programmable I/O
12
Number of Timers/Counters
1
Oscillator Type
Internal
Peripherals
POR, WDT
Radiation Hardening
No
RAM Size
67B
REACH SVHC
No
RoHS
Compliant
Schedule B
8542310000
Watchdog Timer
Yes
Width
3.9mm
