MPN
LPC1810FET100,551
Manufacturer
Description

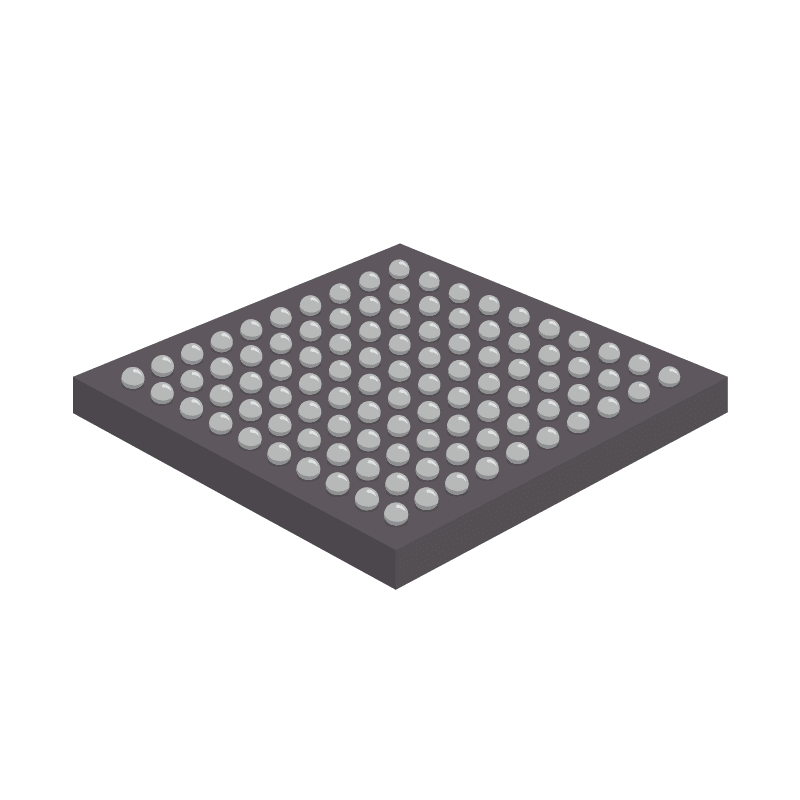

MCU 32-bit LPC1800 ARM Cortex M3 RISC ROMLess 2.5V/3.3V 100-Pin TF-BGA Tray
MPN
LPC1810FET100,551
Total Available Quantity
-
Specifications
Case/Package
TFBGA
Core Architecture
ARM
Data Bus Width
32b
Frequency
180MHz
Height
800µm
Interface
CAN, I2C, I2S, SPI, UART, USART, USB
Lead Free
Lead Free
Length
9.1mm
Max Frequency
150MHz
Max Operating Temperature
85°C
Max Power Dissipation
1.5W
Max Supply Voltage
3.6V
Memory Type
FLASH, ROMless
Min Operating Temperature
-40°C
Min Supply Voltage
2.2V
Mount
Surface Mount
Number of ADC Channels
4
Number of I/Os
49
Number of I2C Channels
2
Number of Pins
100
Number of Programmable I/O
49
Number of PWM Channels
1
Number of SPI Channels
4
Number of Timers/Counters
6
Number of UART Channels
4
Operating Supply Voltage
3.3V
Peripherals
I2C, POR
Radiation Hardening
No
RAM Size
136kB
REACH SVHC
No
RoHS
Compliant
Watchdog Timer
Yes
Width
9.1mm
