MPN
PIC16F914-I/P
Manufacturer
Description

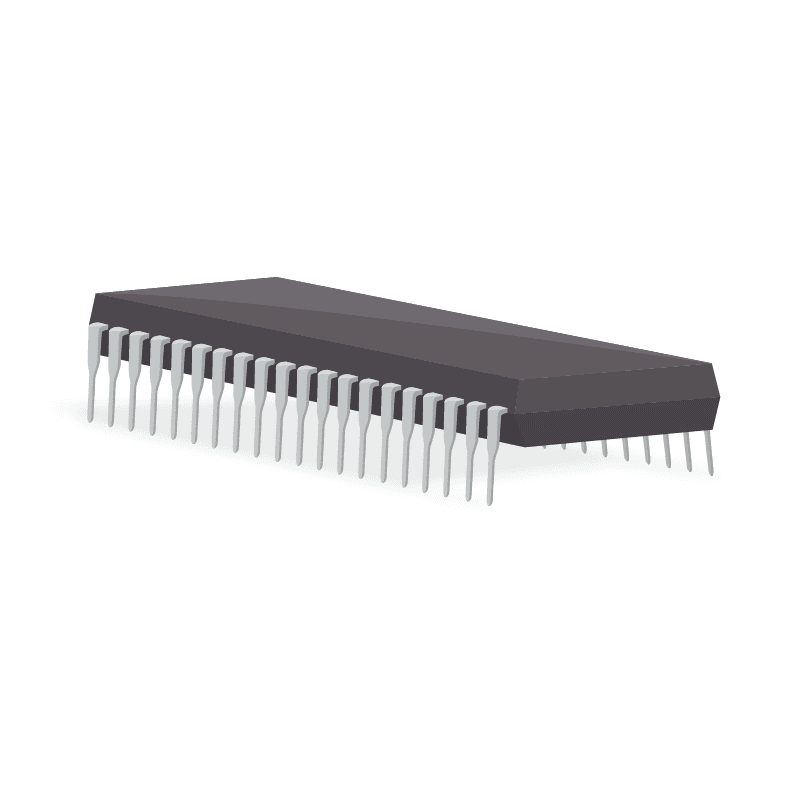

Microchip PIC16F914-I/P, 8bit PIC16F Microcontroller, 20MHz, 7 kB Flash, 40-Pin PDIP
MPN
PIC16F914-I/P
Total Available Quantity
-
Main Attributes
Lifecycle Status
Production
Specifications
Access Time
20µs
Case/Package
PDIP
Core Architecture
PIC
Data Bus Width
8b
Frequency
20MHz
Height
4.953mm
Interface
I2C, SPI, SSP, UART, USART
Lead Free
Lead Free
Length
53.213mm
Max Frequency
20MHz
Max Operating Temperature
85°C
Max Power Dissipation
800mW
Max Supply Voltage
5.5V
Memory Size
7kB
Memory Type
FLASH
Min Operating Temperature
-40°C
Min Supply Voltage
4.5V
Mount
Through Hole
Number of A/D Converters
1
Number of ADC Channels
8
Number of Bits
8
Number of I/Os
35
Number of I2C Channels
1
Number of Pins
40
Number of Programmable I/O
25
Number of PWM Channels
2
Number of SPI Channels
1
Number of Timers/Counters
3
Number of UART Channels
1
Number of USB Channels
1
Oscillator Type
Internal
Packaging
Bulk
Peripherals
Brown-out Detect/Reset, I2C, LCD, POR, PWM, WDT
Radiation Hardening
No
RAM Size
256B
REACH SVHC
No
RoHS
Compliant
Schedule B
8542310000
Watchdog Timer
Yes
Width
14.732mm
