MPN
MIC2548-1YMM
Manufacturer
Description
USB Power SW Hi Side/DIST Single 2.7V to 5.5V 0.1A to 1.5A 8-Pin MSOP Tube
MPN
MIC2548-1YMM
Total Available Quantity
-
Specifications
Ambient Temperature Range High
85°C

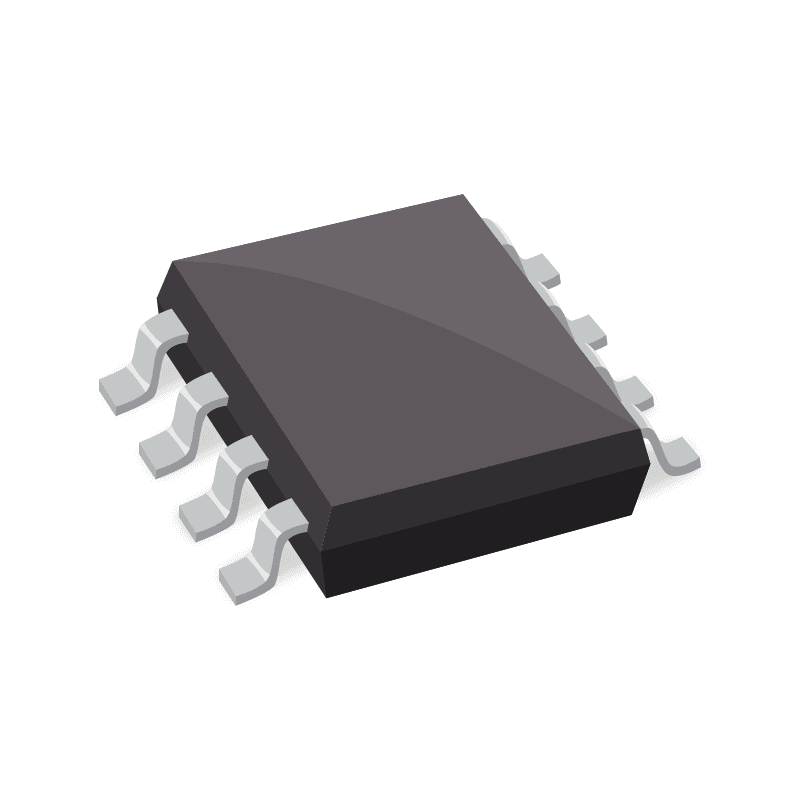

Case/Package
MSOP
Fault Protection
Over Temperature
Height
900µm
Interface
On/Off
Lead Free
Lead Free
Length
3.1mm
Lifecycle Status
Production
Max Input Voltage
5.5V
Max Operating Temperature
85°C
Max Output Current
1.5A
Max Supply Voltage
5.5V
Min Input Voltage
2.7V
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Nominal Input Voltage
5.5V
Nominal Supply Current
75µA
Number of Channels
1
Number of Outputs
1
Number of Pins
8
Output Configuration
High Side
Output Current
1.5A
Radiation Hardening
No
REACH SVHC
No
Resistance
120mO
RoHS
Compliant
Schedule B
8542390000
Turn-Off Delay Time
22µs
Turn-On Delay Time
5ms
Width
3.05mm
