MPN
BQ24072RGTR
Manufacturer
Description
Standalone 1-cell 1.5-A linear battery charger, Power Path, 4.2-V VBAT and VOUT=VBAT + 225mV
MPN
BQ24072RGTR
Total Available Quantity
-
Specifications
Lifecycle Status
Production

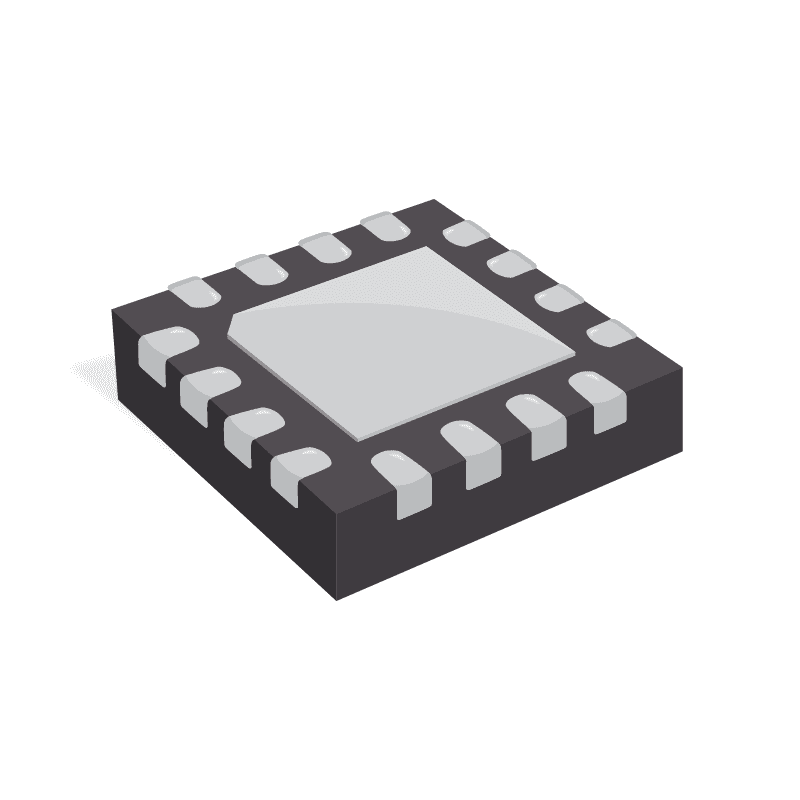

Case/Package
VQFN
Number of Pins
16
Packaging
Tape & Reel
Interface
USB
Max Charge Current
1.5A
Battery Pack Voltage
4.2V
Min Supply Voltage
4.35V
Max Supply Voltage
6.4V
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
Output Current
1.5A
RoHS
Compliant
Contact Plating
Gold
Fault Protection
Over Temperature, Over Voltage, Reverse Current, Short Circuit
Height
1mm
Lead Free
Lead Free
Length
3mm
Manufacturer Lifecycle Status
Production
Max Junction Temperature (Tj)
125°C
Nominal Input Voltage
26V
Nominal Supply Current
1.5A
Number of Cells
1
Number of Outputs
1
Output Voltage
4.2V
Radiation Hardening
No
Schedule B
8542390000
Weight
22.906415mg
Width
3mm
MPN
BQ24072RGTR
