MPN
ACS758ECB-200U-PFF-T
Manufacturer
Description

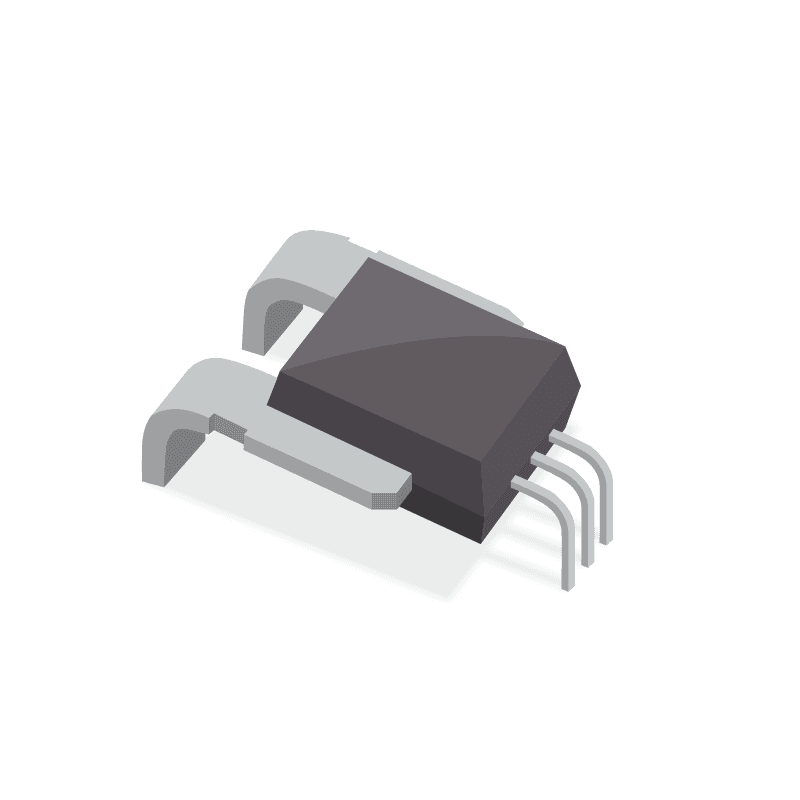

Open Loop Current Sensor AC/DC Current 5V Automotive 5-Pin Case CB-PFF Tube
MPN
ACS758ECB-200U-PFF-T
Total Available Quantity
-
Specifications
Mount
Surface Mount, Through Hole
Number of Pins
5
Polarity
Unidirectional
Number of Channels
1
Accuracy
1.2%
Linearity
1%
Current Sensing
200A
Response Time
4µs
Sensitivity (mV/A)
20mV/A
Max Supply Current
13.5mA
Min Supply Voltage
3V
Max Supply Voltage
5.5V
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
Output Current
1mA
RoHS
Compliant
Bandwidth
120kHz
Frequency
120kHz
Height
7mm
Length
10mm
Operating Supply Voltage
5V
REACH SVHC
No
Schedule B
8542390000
Sensing Method
Hall Effect
Width
13mm
MPN
ACS758ECB-200U-PFF-T
