MPN
DS2E-S-DC24V
Manufacturer
Description

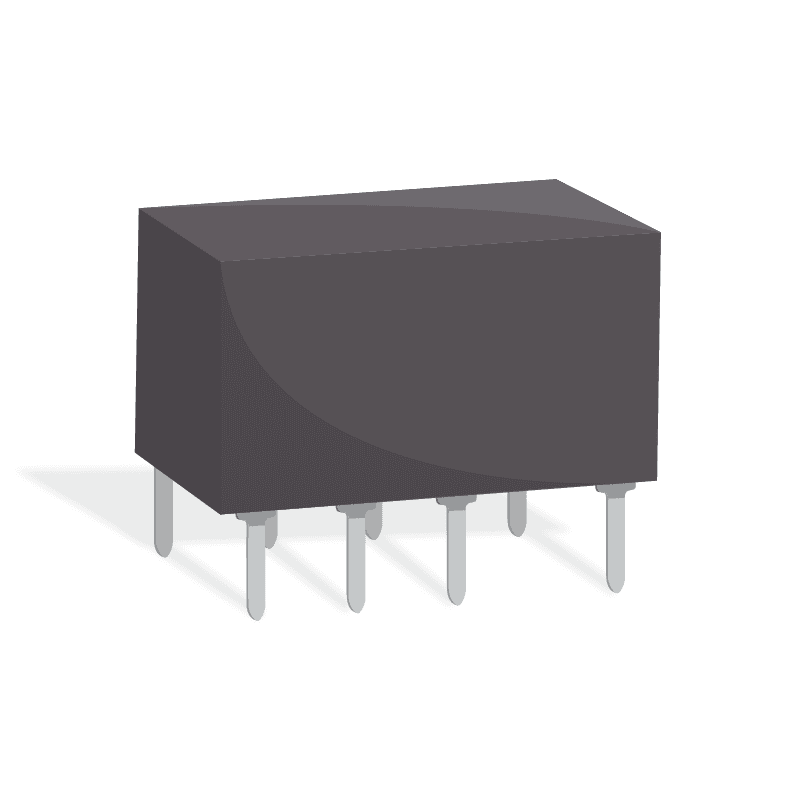

Relay; 2 A AC/DC (Switching), 3 A AC/DC (Carrying); Amber Sealed Type; 2 Form C
MPN
DS2E-S-DC24V
Total Available Quantity
-
Main Attributes
Packaging
Bulk
Specifications
Mount
PCB, Through Hole
Case/Package
DIP
Number of Pins
8
Relay Type
General Purpose
Coil Current
8.3mA
Coil Resistance
2.88kO
Coil Power
200mW
Current Rating
2A
Voltage Rating (AC)
250V
Voltage Rating (DC)
220V
Release Time
5ms
Operate Time
10ms
Contact Material
Silver
Switching Current
2A
Power Consumption
200mW
Throw Configuration
DPDT
Min Operating Temperature
-40°C
Max Operating Temperature
70°C
RoHS
Compliant
Ambient Temperature Range High
70°C
Approvals
CSA, UL
Coil Type
Non-Latching
Coil Voltage (DC)
24V
Contact Current Rating
2A
Contact Plating
Copper, Gold, Silver, Tin
Depth
9.9mm
Height
9.9mm
Insulation Resistance
100MO
Lead Free
Lead Free
Length
20mm
Max Current Rating
2A
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
220V
Number of Contacts
2
Power Rating
200mW
Radiation Hardening
No
Ratings
IP67
REACH SVHC
No
Rise Time
3ms
Termination
PC Pin
Type
Electromechanical
Weight
4g
Width
20mm
