MPN
CD4093BE
Manufacturer
Description

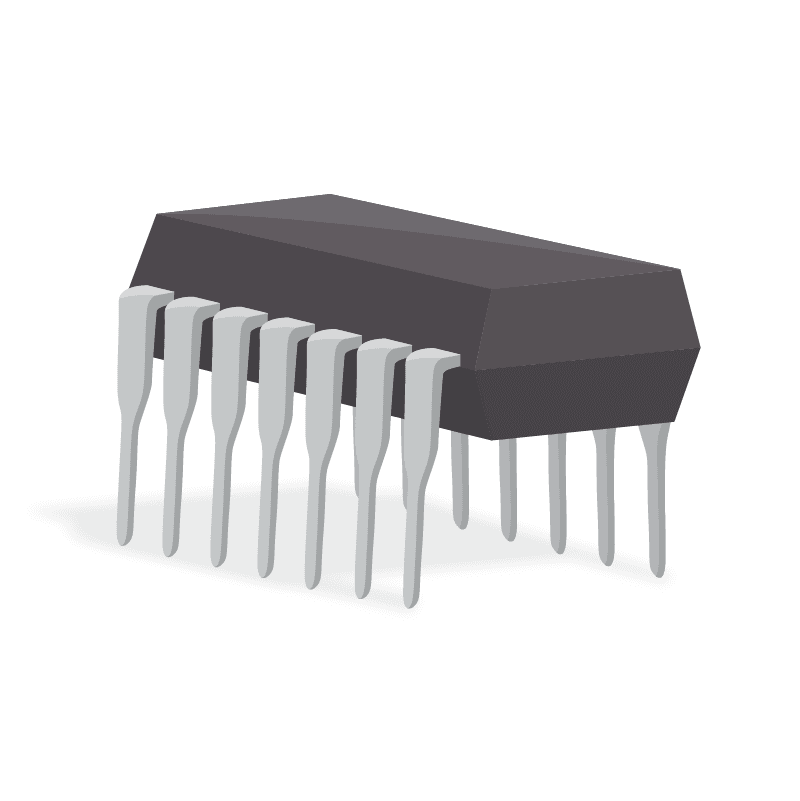

NAND Gate 4-Element 2-IN CMOS 14-Pin PDIP Tube
MPN
CD4093BE
Total Available Quantity
-
Specifications
Lifecycle Status
Production
Mount
Through Hole
Case/Package
PDIP
Number of Pins
14
Logic Function
NAND, Schmitt Trigger
Propagation Delay
130ns
Low Level Output Current
4.2mA
High Level Output Current
-4.2mA
Number of Gates
4
Number of Input Lines
2
Number of Output Lines
1
Number of Circuits
4
Min Supply Voltage
3V
Max Supply Voltage
18V
Min Operating Temperature
-55°C
Max Operating Temperature
125°C
Output Current
6.8mA
RoHS
Non-Compliant
Contact Plating
Gold
Height
5.08mm
Lead Free
Lead Free
Length
19.3mm
Manufacturer Lifecycle Status
Production
Number of Bits
4
Number of Channels
4
Number of Elements
4
Number of Inputs
2
Number of Outputs
1
Quiescent Current
20µA
Radiation Hardening
No
REACH SVHC
No
Schedule B
8542390000
Termination
Through Hole
Turn-On Delay Time
380ns
Weight
927.99329mg
Width
6.35mm
