MPN
SRP1265A-330M
Manufacturer
Description

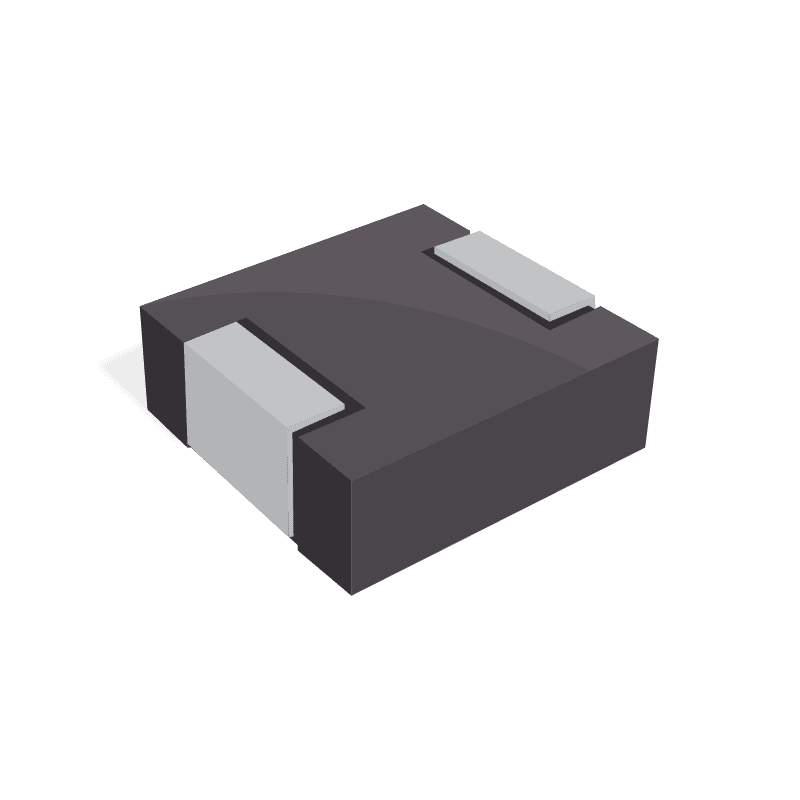

Inductor Power Shielded Wirewound 33uH 20% 100KHz 20Q-Factor Carbonyl Powder 8A 58mOhm DCR Automotive T/R
MPN
SRP1265A-330M
Total Available Quantity
-
Main Attributes
Packaging
Tape & Reel
Specifications
Mount
Surface Mount
Case/Package
Nonstandard
Inductance
33µH
Tolerance
20%
Shielding
Shielded
Core Material
Carbonyl Powder, Ferrite
DC Resistance (DCR)
58mO
DC Current
8A
Saturation Current
11A
Self Resonant Frequency
5MHz
Q Factor
20
Test Frequency
100kHz
Min Operating Temperature
-40°C
Max Operating Temperature
150°C
RoHS
Compliant
Composition
Wirewound
Current Rating
8A
Depth
12.8mm
Height
6.2mm
Height - Seated (Max)
6.4008mm
Inductance Tolerance
20%
Length
13.5mm
Max DC Current
8A
Military Standard
REACH SVHC
No
RMS Current (Irms)
8A
Schedule B
8504500000
Termination
SMD/SMT
Width
12.4968mm
