MPN
LTST-C170CKT
Manufacturer
Description

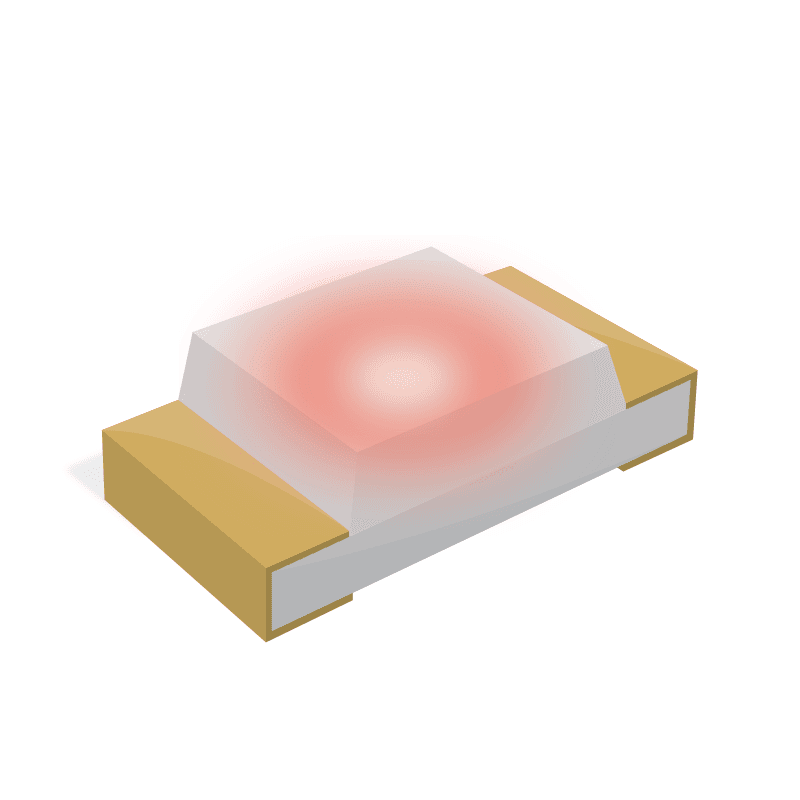

LED Low-Power Uni-Color Red 660nm 1.8V 2-Pin Chip LED T/R
MPN
LTST-C170CKT
Total Available Quantity
-
Specifications
Mount
Surface Mount
Case/Package
0805
Number of Pins
2
Packaging
Tape & Reel
Illumination Color
Red
Luminous Intensity
10mcd
Forward Voltage
1.8V
Reverse Voltage
5V
Forward Current
40mA
Test Current
10mA
Dominant Wavelength
638nm
Lens Style
Clear
Lens Transparency
Clear
Viewing Angle
130°
Min Operating Temperature
-55°C
Max Operating Temperature
85°C
RoHS
Compliant
Case Code (Imperial)
0805
Case Code (Metric)
2012
Color
Red
Current
4A
Depth
1.25mm
Height
1.1mm
Lead Free
Lead Free
Length
2mm
Lens Color
Clear, Colorless
Max Power Dissipation
100mW
Number of Elements
1
Number of LEDs
1
Power Dissipation
100mW
Radiation Hardening
No
Schedule B
8541402000
Voltage
5V
Wavelength
660nm
Width
1.25mm
MPN
LTST-C170CKT
