MPN
B3FS-1012P
Manufacturer
Description

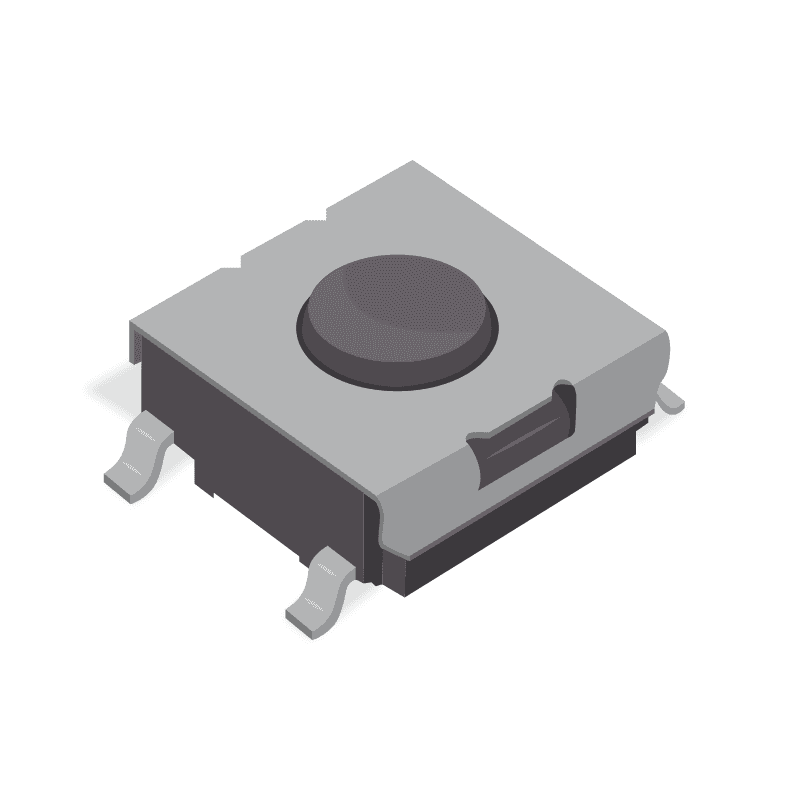

Switch Tactile N.O. SPST Round Button Gull Wing 24VDC 300000Cycles 150gf SMD Emboss T/R
MPN
B3FS-1012P
Total Available Quantity
-
Specifications
Lifecycle Status
Production
Mount
Surface Mount
Case/Package
SMD/SMT
Operating Force
1.47N
Switch Function
Off-Mom
Orientation
Straight
Current Rating
50mA
Mechanical Life
300kcycles
Electrical Life
300kcycles
Illumination Type
Non-Illuminated
Throw Configuration
SPST
Min Operating Temperature
-25°C
Max Operating Temperature
70°C
RoHS
Compliant
Actuator Length
1.7mm
Ambient Temperature Range High
70°C
Contact Current Rating
50mA
Contact Plating
Silver
Contact Resistance
100mO
Depth
8mm
Height
4.7mm
Length
6mm
Life (Cycles)
300kcycles
Max Current Rating
50mA
Max Voltage Rating (DC)
24V
Number of Positions
2
Radiation Hardening
No
Switch Travel
250µm
Termination
Gull Wing
Voltage Rating (DC)
24V
Weight
200mg
Width
6mm
MPN
B3FS-1012P
