MPN
SRN4018-4R7M
Manufacturer
Description

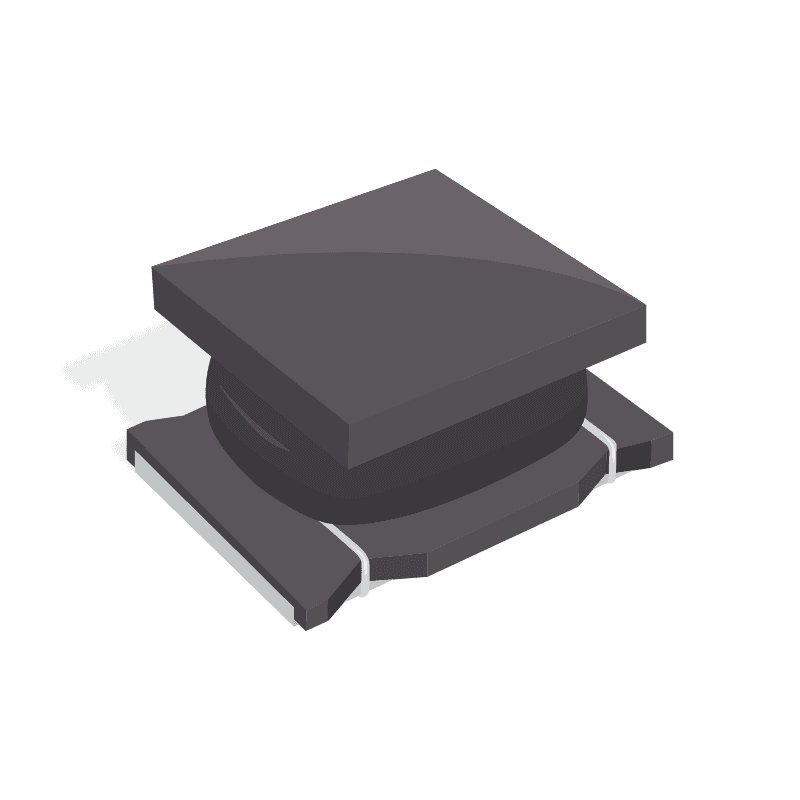

Ind Power Semi-Shielded Wirewound 4.7uH 20% 100KHz Ferrite 1.9A 1515 T/R
MPN
SRN4018-4R7M
Total Available Quantity
-
Main Attributes
Packaging
Tape & Reel
Specifications
Mount
Surface Mount
Case/Package
Nonstandard
Number of Pins
2
Inductance
4.7µH
Tolerance
20%
Shielding
Shielded
Core Material
Ferrite
DC Resistance (DCR)
84mO
DC Current
1.9A
Saturation Current
2A
Self Resonant Frequency
35MHz
Q Factor
9
Test Frequency
100kHz
Min Operating Temperature
-25°C
Max Operating Temperature
120°C
RoHS
Compliant
Composition
Wirewound
Current Rating
1.9A
Depth
4.2mm
Height
1.8mm
Height - Seated (Max)
1.8034mm
Inductance Tolerance
0.2
Length
4mm
Max DC Current
1.9A
Military Standard
Not
Radiation Hardening
No
REACH SVHC
No
RMS Current (Irms)
1.9A
Schedule B
8504500000
Series Resistance
84mO
Termination
SMD/SMT
Width
4mm
MPN
SRN4018-4R7M
