MPN
IKCM15L60GD
Manufacturer
Description

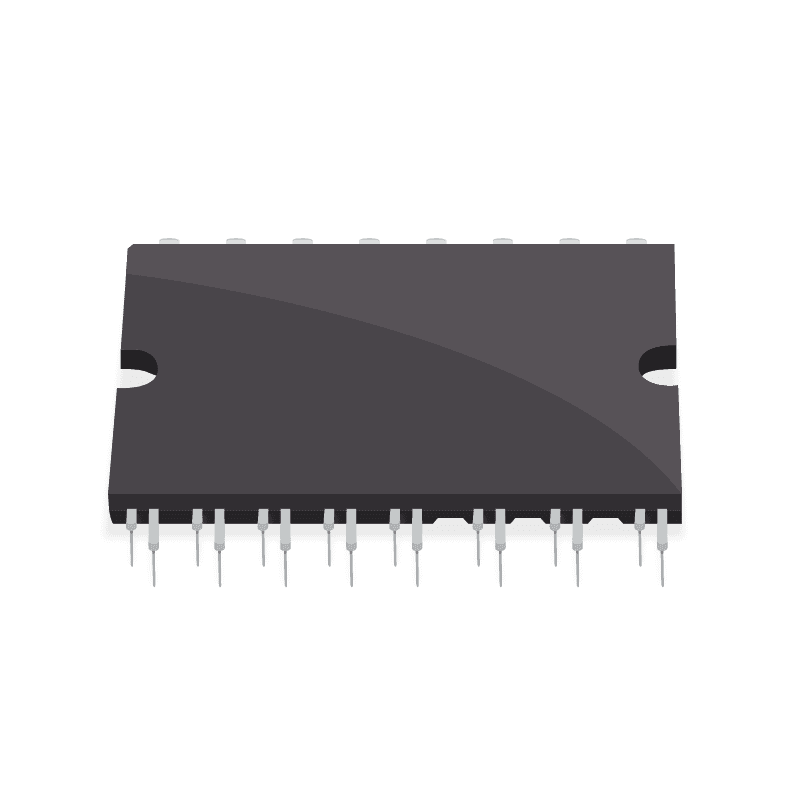

Power Driver Module IGBT 3 Phase 600 V 20 A 24-PowerDIP Module (1.028", 26.10mm)
MPN
IKCM15L60GD
Total Available Quantity
8,680
Lead time to Ship
3-4 weeks
Ships from
HONG KONG
Country of Origin
-
Date Code
24+
Specifications
Lifecycle Status
Production
Package Quantity
280
Number of Outputs
4
Max Junction Temperature (Tj)
150°C
Rise Time
30ns
Fall Time
55ns
Min Supply Voltage
14.5V
Max Supply Voltage
18.5V
Min Operating Temperature
-40°C
Max Operating Temperature
150°C
Output Current
15A
RoHS
Compliant
Height
5.6mm
Lead Free
Lead Free
Nominal Supply Current
370µA
Number of Drivers
6
Output Voltage
600V
Turn-Off Delay Time
950ns
Turn-On Delay Time
680ns
MPN
IKCM15L60GD
Total Available Quantity
8,680
Lead time to Ship
3-4 weeks
Ships from
HONG KONG
Country of Origin
-
Date Code
24+
