MPN
SLP221M250A3P3
Manufacturer
Description

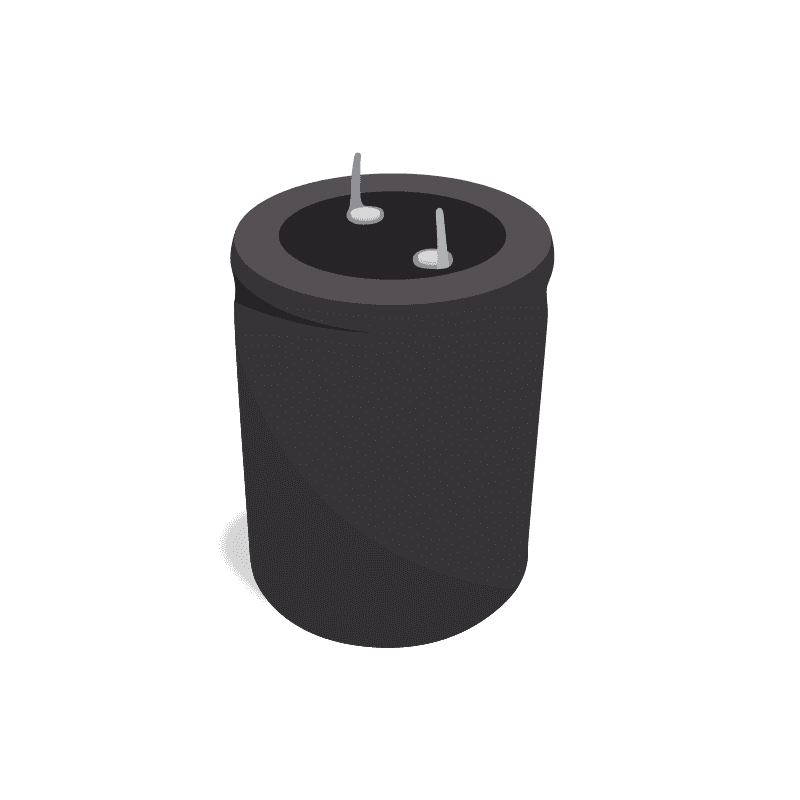

Cap Aluminum Lytic 220uF 250V 20% (22 X 30mm) Snap-In 10mm 0.905 Ohm 1000mA 3000h 105C
MPN
SLP221M250A3P3
Total Available Quantity
-
Specifications
Mount
PCB, Through Hole
Case/Package
Radial
Number of Pins
2
Capacitance
220µF
Tolerance
20%
ESR (Equivalent Series Resistance)
905mΩ
Life (Hours)
3000
Ripple Current
1A
Voltage Rating
250V
Height - Seated (Max)
29.9974mm
Min Operating Temperature
-25°C
Max Operating Temperature
105°C
RoHS
Compliant
Diameter
22mm
Dielectric Material
Aluminum
Height
30mm
Lead Diameter
800µm
Lead Length
6.3mm
Lead Pitch
10mm
Length
30mm
Polarity
Polar
REACH SVHC
Unknown
Termination
Snap in
Test Frequency
120Hz
Voltage
250V
Voltage Rating (DC)
250V
Weight
68.038855g
Width
38.1mm
