MPN
5536475-1
Manufacturer
Description

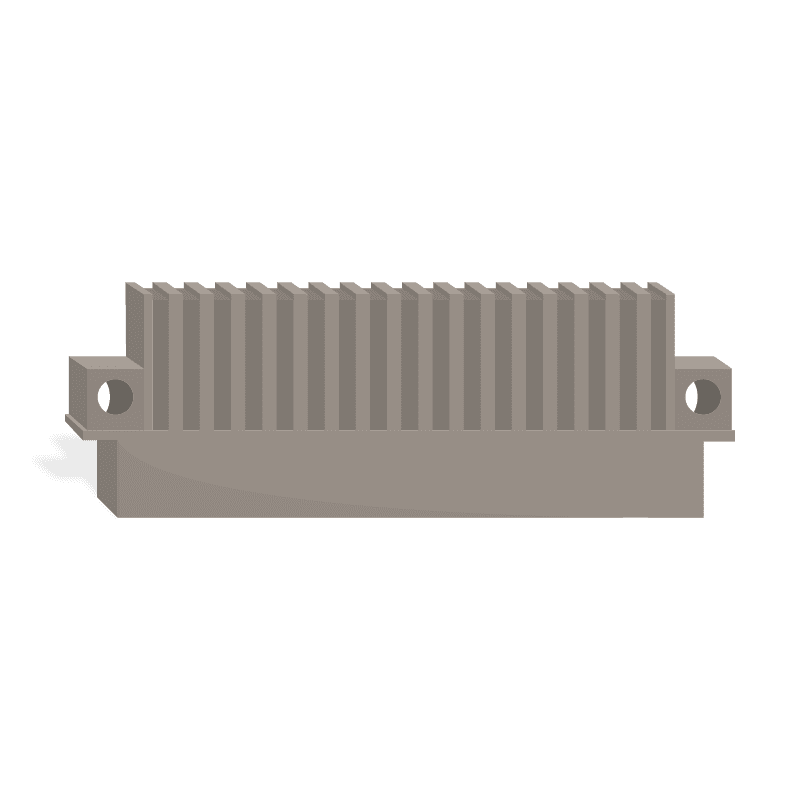

Conn DIN 41612 PL 96 POS 2.54mm Solder RA Thru-Hole Box
MPN
5536475-1
Total Available Quantity
-
Specifications
Circuit Application
Signal
Color
Grey
Connector Type
Plug
Contact Current Rating
1.5A
Contact Material
Brass
Contact Plating
Gold, Tin
Current Rating
1.5A
ELV
Compliant
Flammability Rating
UL94 V-0
Height
11.1mm
Housing Color
Grey
Housing Material
Polymer
Insulation Material
Polymer
Lead Free
Lead Free
Lead Length
2.65mm
Length
94mm
Lifecycle Status
Production
Max Current Rating
1.5A
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Columns
16
Number of Contacts
96
Number of Pins
96
Number of Positions
96
Number of Rows
3
Number of Signal Positions
96
Operating Supply Voltage
250V
Orientation
Right Angle
Packaging
Bulk
PCB Mounting Orientation
Right Angle
PCB Thickness
1.5748mm
Pitch
2.54mm
RoHS
Compliant
Row Spacing
2.54mm
Schedule B
8536694040
Sealable
No
Tail Length
2.64mm
Termination
Solder
Termination Post Length
2.65mm
