MPN
EEU-FM1V102
Manufacturer
Description

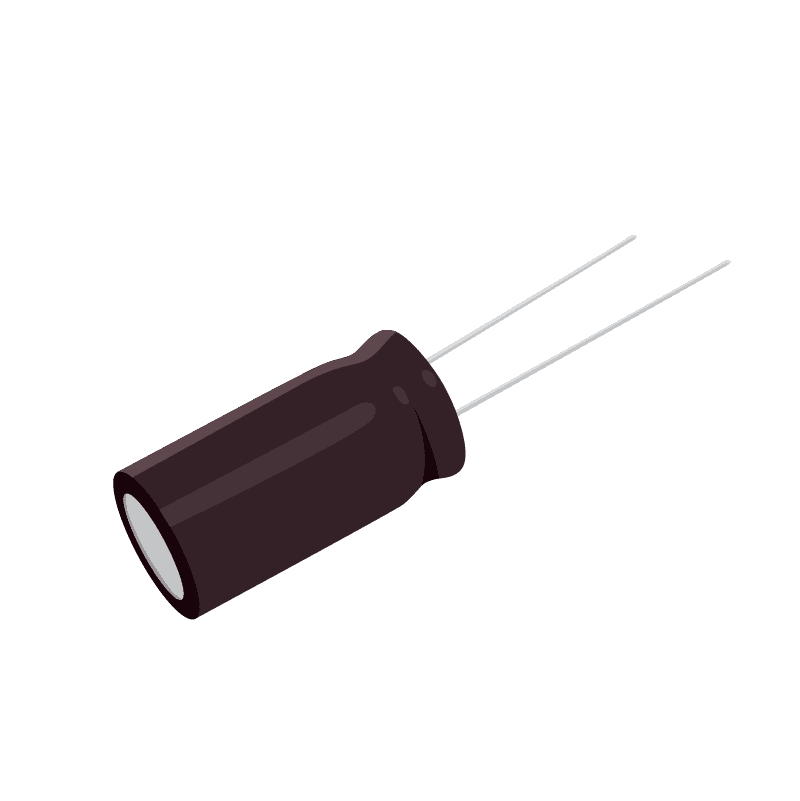

Aluminum Electrolytic Capacitor, 1000 uF, 35 V, ± 20%, 7000 hours @ 105°C, Radial Leaded
MPN
EEU-FM1V102
Total Available Quantity
-
Specifications
Capacitance
1mF
Case/Package
Radial
Contact Plating
Tin
Diameter
12.5mm
Dissipation Factor
0.12%
ESR (Equivalent Series Resistance)
15mO
Height
25mm
Height - Seated (Max)
27.0002mm
Impedance
15mO
Lead Diameter
600µm
Lead Free
Lead Free
Lead Pitch
5mm
Leakage Current
350µA
Length
25mm
Life (Hours)
7000
Lifecycle Status
Production
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
PCB, Through Hole
Number of Pins
2
Packaging
Bulk
Radiation Hardening
No
REACH SVHC
No
Ripple Current
3.19A
RoHS
Compliant
Schedule B
8532220020
Termination
Radial
Tolerance
20%
Voltage
35V
Voltage Rating
35V
Voltage Rating (AC)
35V
Voltage Rating (DC)
35V
MPN
EEU-FM1V102
Total Available Quantity
-
