MC56F8367VPYE

• 16-Bit microcontroller, 56800E Core architecture, 60M Hz, 56F8300 Series
• 512kB Flash memory, 36kB RAM, 4.8ns Access Time
• 76 Programmable I/Os; 12 PWM channels; 4 Timers/counters; 4 ADC Channels Across 4 A/D Converters
• CAN, EBI/EMI, SCI and SPI interfaces; 2 SPI Channels
• On-Chip POR, Watchdog Timer and Temperature Sensor

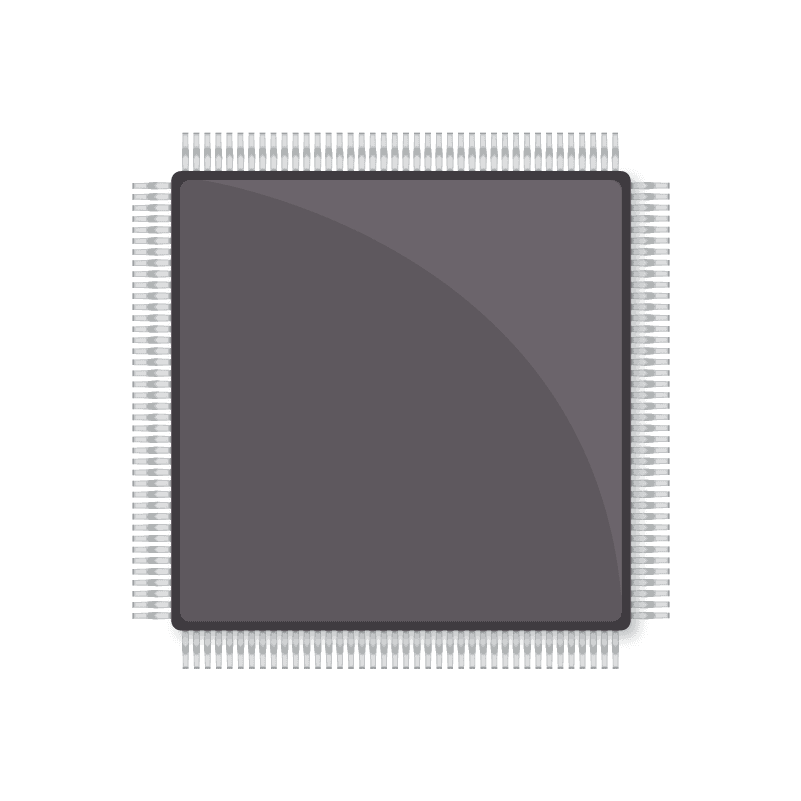

• 160-Pin LQFP, 24mm X 24mm, 0.5mm Lead pitch, 1.4mm height; -40°C to 105°C; Lead free, RoHS compliant, MSL 3, Tray of 40

The MC56F8367VPYE is a 16-bit microcontroller from NXP Semiconductors in the 56F8300 series, built on the 56800E core architecture. It runs at 60M Hz with a 16-bit data bus, 512kB of on-chip flash memory, 36kB of RAM, and a 4.8ns access time. The device offers 76 programmable I/Os, four 16-bit A/D converter channels, 12 PWM channels, four timers/counters, two SPI channels, and CAN, EBI/EMI, SCI, and SPI interfaces, plus POR, watchdog timer, and an on-chip temperature sensor. The MC56F8367VPYE operates from 2.25V to 2.75V core supply at 3.3V, spans -40°C to 105°C, and is supplied in a 160-pin LQFP measuring 24mm by 24mm with 0.5mm lead pitch.

Microcontrollers in this class combine a control-oriented core with a large PWM complement, ADC channels, and CAN, which is the standard feature mix for motor control and digital power conversion. The MC56F8367VPYE's 12 PWM channels support multi-phase inverter and bridge topologies, while CAN and SCI provide the field bus and serial links those systems need. The -40°C to 105°C rating and the 160-pin LQFP suit industrial drives, servo and pump controllers, UPS and inverter designs, and appliance and HVAC control boards. Buyers are typically industrial drive and power electronics OEMs, along with maintenance organizations sustaining installed 56F8300-based equipment.
