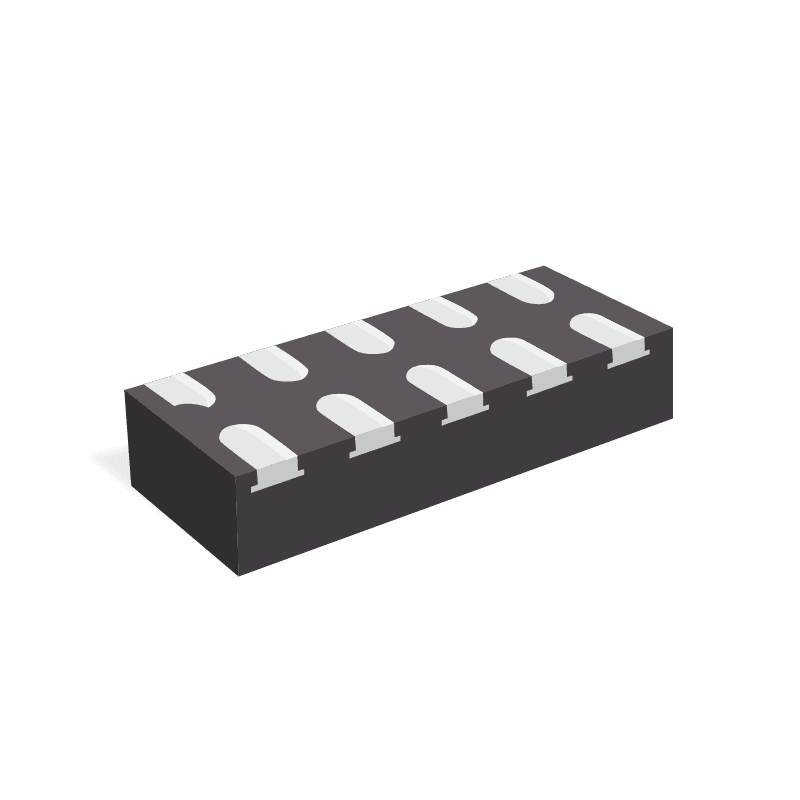

TPD4E05U06DQAR
- Description
- 14V 2.5A (8/20us) 5.5V (Max) Unidirectional 6V uSON-10 ESD Protection Devices ROHS
- Breakdown Voltage
- 6.5V
- Peak Pulse Current
- 5A
- Number of Channels
- 4
- Capacitance
- 500fF
- Clamping Voltage
- 10V
- Datasheet
Quantity
Let us do the sourcing. Even if it's not available now, our team can track it down and tailor a solution just for you.
- Quad Channel Design for Enhanced Protection
- Low Capacitance of 0.5 pF for High-Speed Performance
- Max Operating Temperature: 125°C
- Unidirectional Polarity for Specific Applications
- Clamping Voltage of 10 V for Effective ESD Mitigation
The Texas Instruments Quad ESD protection diode is designed to safeguard sensitive electronic components in USB HDMI and high-speed interfaces from electrostatic discharge (ESD). With a compact USON package and a robust performance profile, this diode ensures reliable operation in demanding environments. It features a low capacitance of 0.5 pF and operates effectively at a maximum voltage of 5.5 V, making it an ideal choice for high-speed data applications.
The Quad 0.5-pF, 5.5-V, ±12-kV ESD protection diode is designed for safeguarding USB, HDMI, and high-speed interfaces from electrostatic discharge (ESD). With a clamping voltage of 10V and a breakdown voltage of 6.5V, this unidirectional diode provides reliable protection with minimal capacitance of 0.5 pF. Its surface mount design and automotive-grade qualification make it suitable for a variety of applications, ensuring the longevity and reliability of electronic components.
Fusion’s in-house quality hubs and Prosemi testing facility are fully certified to meet critical industry standards for electronic component inspection and testing.
