MPN
TS3USB221ARSER
Manufacturer
Description

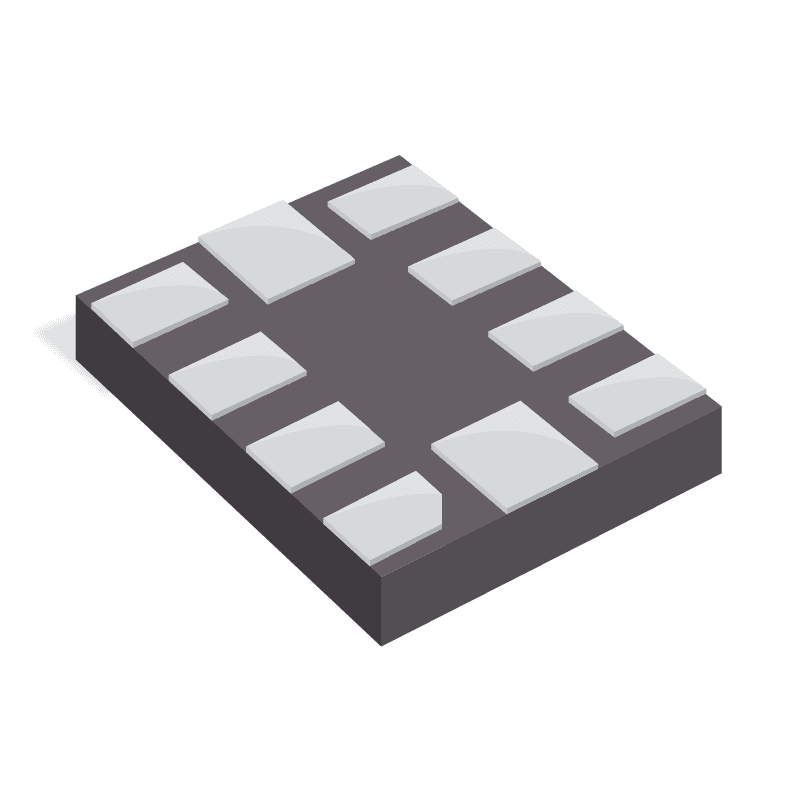

High-Speed USB 2.0 1: 2 Mux/Demux Switch With Single Enable and ESD Protection 10-UQFN -40 to 85
MPN
TS3USB221ARSER
Total Available Quantity
21,000
Lead time to Ship
1-2 weeks
Ships from
SINGAPORE
Country of Origin
-
Date Code
24+
Specifications
Series
TS3USB221A
Lifecycle Status
Production
Mount
Surface Mount
Case/Package
UQFN
Number of Pins
10
Packaging
Tape & Reel
Package Quantity
3,000
Supply Type
Single
Number of Channels
2
Number of Inputs
4
Number of Outputs
2
Resistance
6O
Min Supply Voltage
2.3V
Max Supply Voltage
3.6V
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
Operating Supply Current
30µA
RoHS
Compliant
Contact Plating
Gold
Data Rate
480Mbps
Drain to Source Resistance
6O
ECCN
EAR99
Height
600µm
HTS
8542390001
Lead Free
Lead Free
Length
1.5mm
Manufacturer Lifecycle Status
Production
Nominal Supply Current
30µA
Operating Supply Voltage
3V
Propagation Delay
250ps
Radiation Hardening
No
REACH SVHC
No
Schedule B
8542390000
Simplex/Duplex
8542390001
Termination
SMD/SMT
Turn-Off Delay Time
12ns
Turn-On Delay Time
30ns
Weight
10.007382mg
Width
2mm
MPN
TS3USB221ARSER
Total Available Quantity
21,000
Lead time to Ship
1-2 weeks
Ships from
SINGAPORE
Country of Origin
-
Date Code
24+
