MPN
BSC052N03LSATMA1
Manufacturer
Description

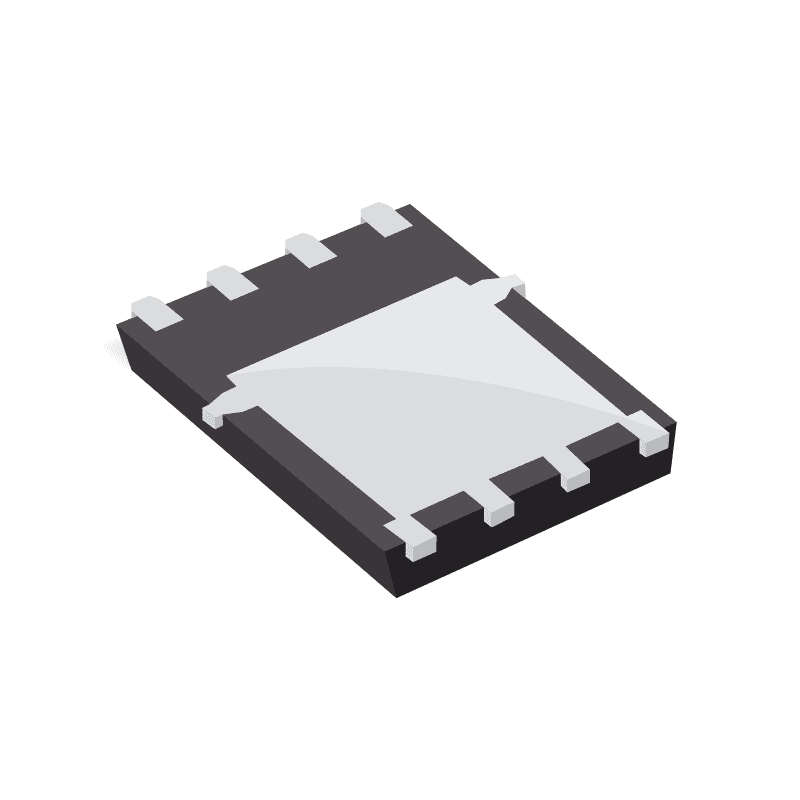

Single N-Channel 30 V 5.2 mOhm 12 nC OptiMOS Power Mosfet - TDSON-8
MPN
BSC052N03LSATMA1
Total Available Quantity
-
Main Attributes
Gate to Source Voltage (Vgs)
20V
Drain to Source Voltage (Vdss)
30V
Continuous Drain Current (ID)
17A
Drain to Source Resistance
4.3mO
Input Capacitance
770pF
Specifications
Lifecycle Status
Production
Mount
Surface Mount
Number of Pins
8
Packaging
Tape & Reel
Package Quantity
5,000
Threshold Voltage
2V
Power Dissipation
2.5W
Min Operating Temperature
-55°C
Max Operating Temperature
150°C
RoHS
Compliant
Contact Plating
Tin
Fall Time
2.4ns
Halogen Free
Halogen Free
Lead Free
Contains Lead
Max Dual Supply Voltage
30V
Max Power Dissipation
28W
Number of Elements
1
On-State Resistance
5.2mO
Radiation Hardening
No
REACH SVHC
No
Rise Time
3.6ns
Schedule B
8541290080
Turn-Off Delay Time
13ns
Turn-On Delay Time
2.4ns
MPN
BSC052N03LSATMA1
