SN74LVC1G125DCKR
- Description
- Buffer/Line Driver 1-CH Non-Inverting 3-ST CMOS Medical 5-Pin SC-70 T/R
- Logic Function
- Buffer, Inverting
- Datasheet
Quantity
15,000 AvailableLet us do the sourcing. Even if it's not available now, our team can track it down and tailor a solution just for you.
- Single-channel non-inverting buffer/line driver
- 3-state (high-impedance) output enable
- Wide 1.65V to 5.5V supply operation
- +/-32mA output drive current

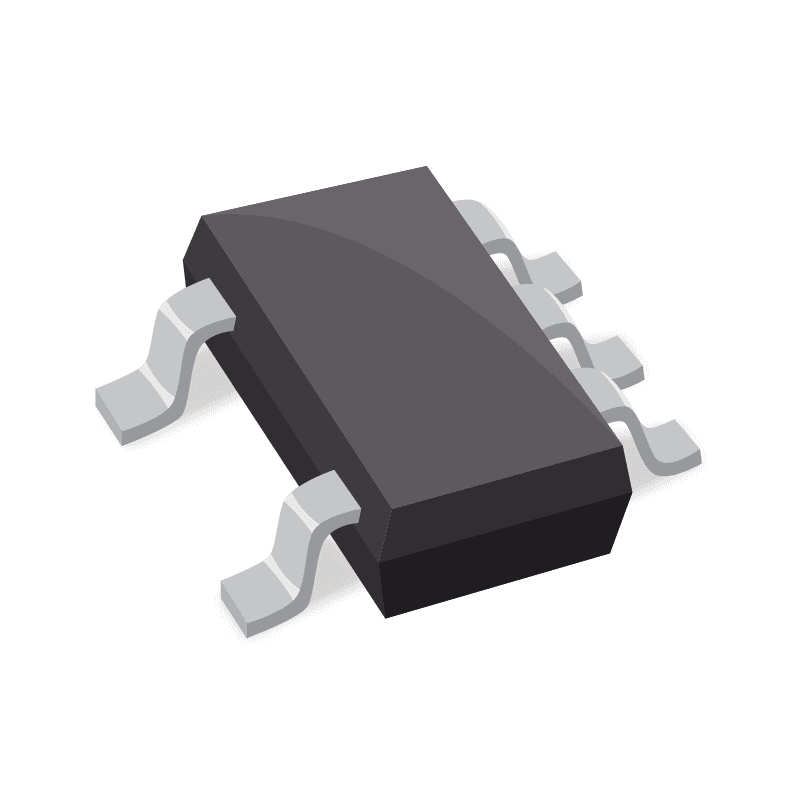

- 5-pin SC-70 package, surface mount
The Texas Instruments SN74LVC1G125DCKR is a single-channel non-inverting buffer/line driver with a 3-state output in a 5-pin SC-70 package. It operates over a wide 1.65V to 5.5V supply range and provides +/-32mA output drive. The 3-state output allows the buffer to be disabled to a high-impedance state for shared-bus designs.
This single-gate buffer is used for signal buffering, level translation across its wide supply range, and driving or isolating signals on shared buses via its 3-state output. The tiny SC-70 package suits space-constrained boards. Typical users are digital designers needing glue logic in embedded, medical, and consumer designs.
