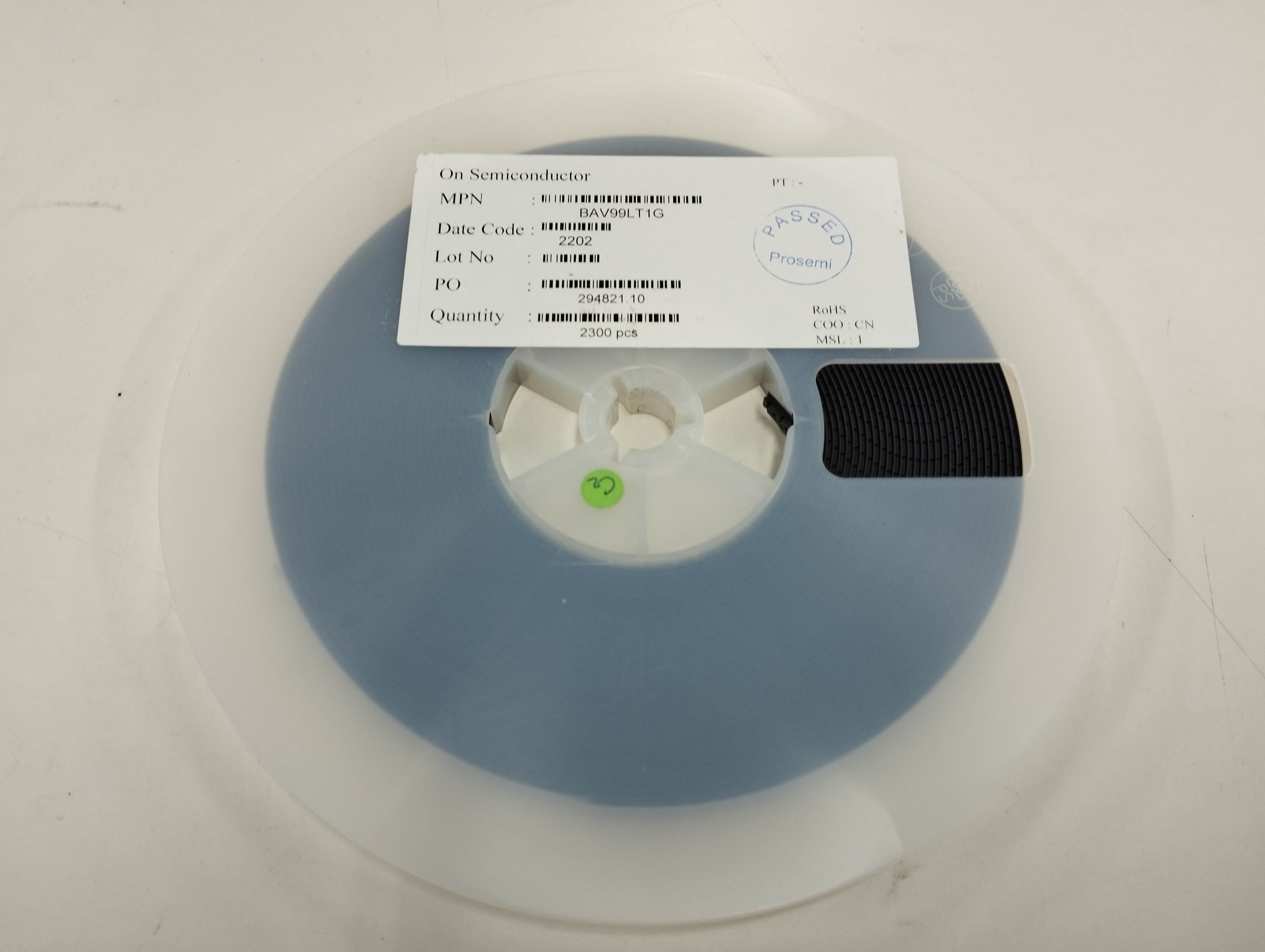

MPN
BAV99LT1G
Manufacturer
Description
DUAL SERIES Switching Diode Rectifier Diode, 2 Element, 0.215A, 100V V(RRM), Silicon, TO-236
MPN
BAV99LT1G
Total Available Quantity
2,300
Lead time to Ship
In Stock
Ships from
SINGAPORE
Country of Origin
CHINA
Date Code
2202
Main Attributes
Forward Voltage
1.25V
Max Surge Current
2A
Average Rectified Current
215mA
Reverse Recovery Time
6ns
Max Junction Temperature (Tj)
150°C
Max Repetitive Reverse Voltage (Vrrm)
100V
Specifications
Series
BAV99L
Lifecycle Status
Production
Mount
Surface Mount
Case/Package
SOT-23
Number of Pins
3
Packaging
Tape & Reel
Package Quantity
3,000
Forward Current
215mA
Reverse Voltage
100V
Peak Reverse Current
1µA
Max Reverse Leakage Current
2.4µA
Recovery Time
6ns
Capacitance
1.5pF
Power Dissipation
225mW
Min Operating Temperature
-65°C
Max Operating Temperature
150°C
RoHS
Compliant
Contact Plating
Tin
Current Rating
200mA
ECCN
EAR99
Element Configuration
Dual
Height
1.11mm
HTS
8541.10.0070
Lead Free
Lead Free
Length
2.9mm
Manufacturer Lifecycle Status
Active
Max Forward Surge Current (Ifsm)
500mA
Max Power Dissipation
300mW
Max Reverse Voltage (DC)
70V
MSL
1
Peak Non-Repetitive Surge Current
2A
Radiation Hardening
No
REACH SVHC
No
Schedule B
8541100070
Voltage Rating (DC)
70V
Width
1.3mm
About This Product
The onsemi DUAL SERIES Switching Diode Rectifier Diode BAV99L is a reliable silicon component designed for efficient rectification in various electronic applications. With a compact SOT-23 package, this diode offers excellent performance characteristics, making it suitable for surface mount technology. It operates effectively under a wide range of temperatures and provides robust electrical specifications, ensuring optimal functionality in demanding environments.
