MPN
MCIMX258CJM4A
Manufacturer
Description

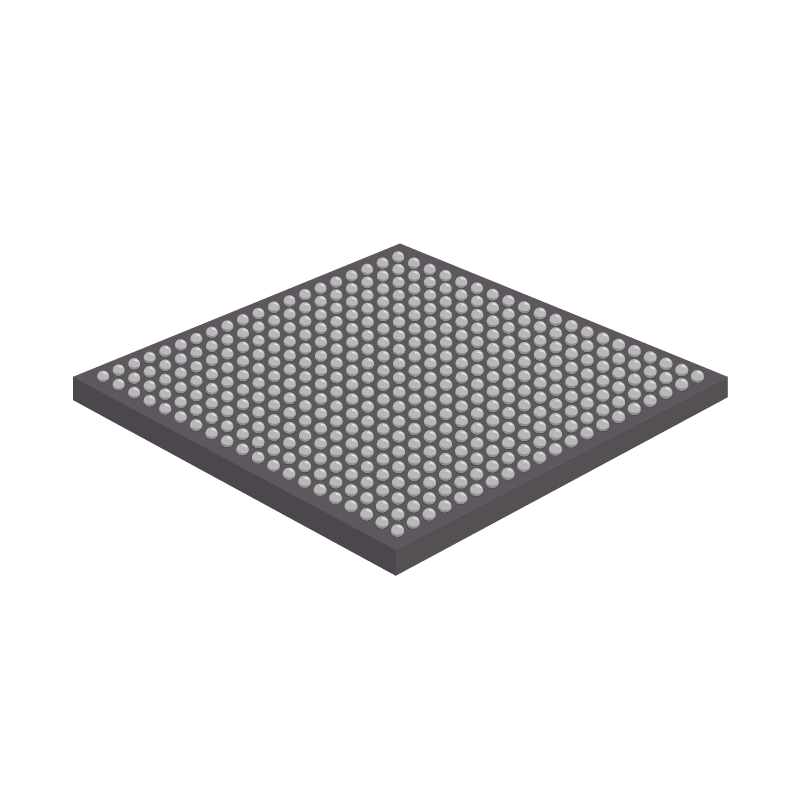

ARM926EJ-S Microprocessor IC i.MX25 1 Core, 32-Bit 400MHz 400-MAPBGA (17x17)
MPN
MCIMX258CJM4A
Total Available Quantity
-
Main Attributes
Core Architecture
ARM
Max Frequency
400MHz
Data Bus Width
32b
Memory Size
32kB
Specifications
Mount
Surface Mount
Case/Package
MAPBGA
Number of Pins
400
Frequency
400MHz
RAM Size
128kB
Number of I/Os
128
Number of Timers/Counters
4
Interface
CAN, EBI/EMI, Ethernet, I2C, MMC, SPI, UART, USART, USB
Min Supply Voltage
1.38V
Max Supply Voltage
1.52V
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
RoHS
Compliant
Contact Plating
Copper, Silver, Tin
Height
1.18mm
Length
17mm
Memory Type
External Program Memory, L1 Cache, ROM, SRAM
Number of Ethernet Channels
1
Number of I2C Channels
3
Number of PWM Channels
4
Number of SPI Channels
2
Number of UART Channels
5
Oscillator Type
External
Peripherals
DMA, LCD, POR, PWM, WDT
Radiation Hardening
No
REACH SVHC
No
Schedule B
8542310000
Weight
838.692292mg
Width
17mm
About This Product
MPN
MCIMX258CJM4A
Total Available Quantity
-
