MPN
SIP32431DNP3-T1GE4
Manufacturer
Description

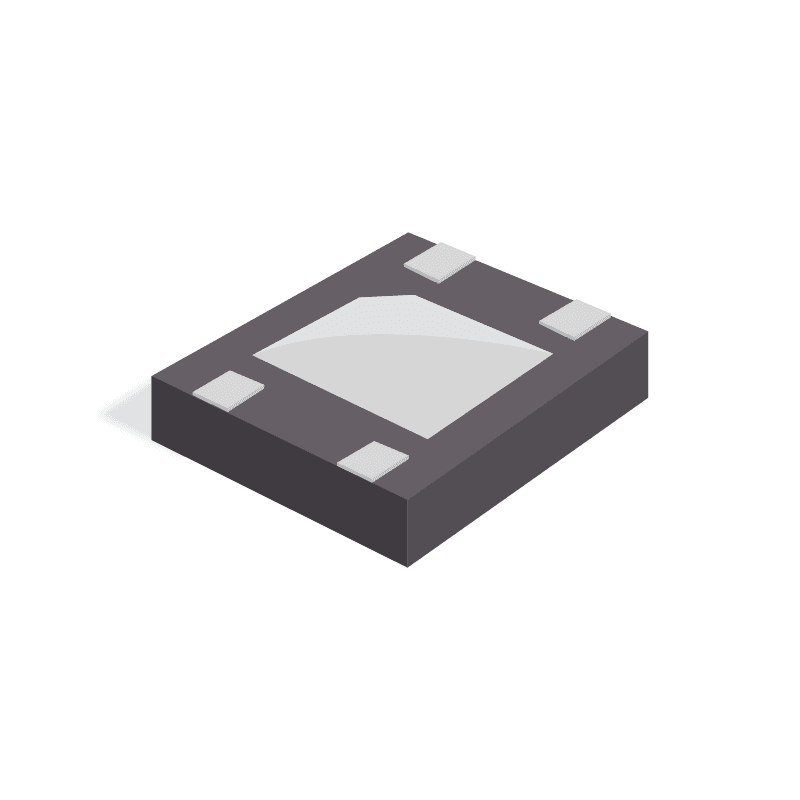

SiP32431 Series 5.5 V 105 mOhm 1 A Slew Rate Controlled Load Switch - TDFN-4
MPN
SIP32431DNP3-T1GE4
Total Available Quantity
-
Specifications
Mount
Surface Mount
Case/Package
TDFN
Number of Pins
4
Max Output Current
1.4A
Number of Outputs
1
Number of Channels
1
Fault Protection
Reverse Current
Max Junction Temperature (Tj)
125°C
Max Power Dissipation
324mW
Min Supply Voltage
1.1V
Max Supply Voltage
5.5V
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
Output Current
1A
RoHS
Compliant
Height
600µm
Interface
On/Off
Lead Free
Lead Free
Nominal Input Voltage
5.5V
Output Configuration
High Side
Power Dissipation
324mW
Radiation Hardening
No
Resistance
520mO
Turn-Off Delay Time
4µs
Turn-On Delay Time
20µs
Weight
50.008559mg
MPN
SIP32431DNP3-T1GE4
