MPN
TEPT4400
Manufacturer
Description

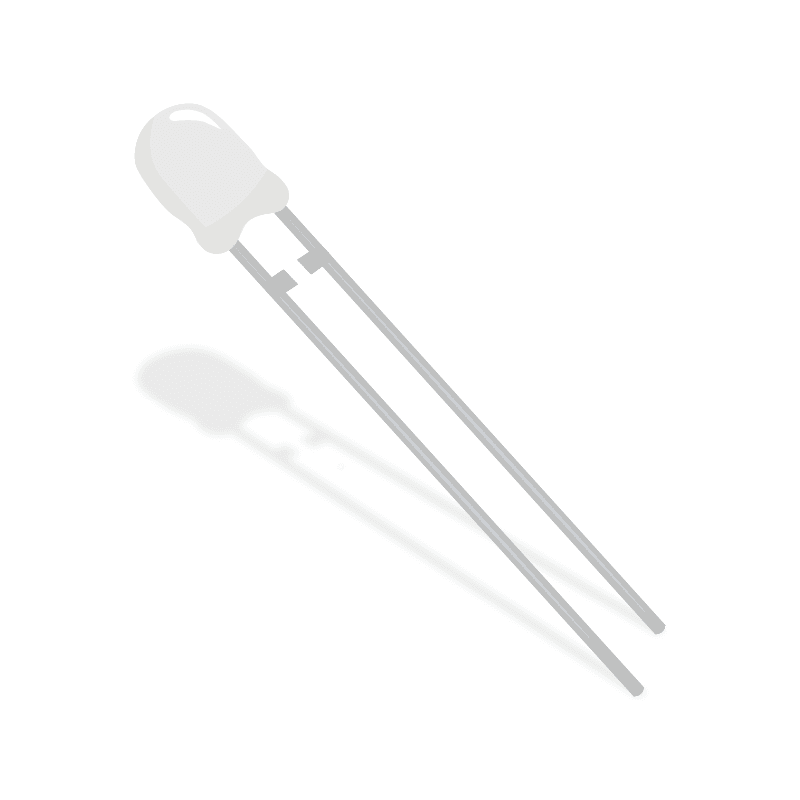

Ambient Light Sensor Phototransistor Chip Silicon 570nm 2-Pin T-1
MPN
TEPT4400
Total Available Quantity
-
Specifications
Mount
Through Hole
Case/Package
Radial
Number of Pins
2
Collector Emitter Voltage (VCEO)
1.5V
Collector Emitter Breakdown Voltage
6V
Max Collector Current
20mA
Viewing Angle
30°
Wavelength
570nm
Power Dissipation
100mW
Dark Current
3nA
Operating Supply Voltage
5V
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
RoHS
Compliant
Ambient Temperature Range High
85°C
Height
4.5mm
Lead Free
Lead Free
Length
3.2mm
Lens Style
Domed
Max Junction Temperature (Tj)
100°C
Number of Channels
1
Number of Elements
1
Output Type
Analog
Peak Wavelength
570nm
Polarity
NPN
Power Consumption
100mW
Radiation Hardening
No
REACH SVHC
Unknown
Schedule B
8541409500
Width
3.2mm
MPN
TEPT4400
