MPN
PS2911-1-F3-AX
Manufacturer
Description

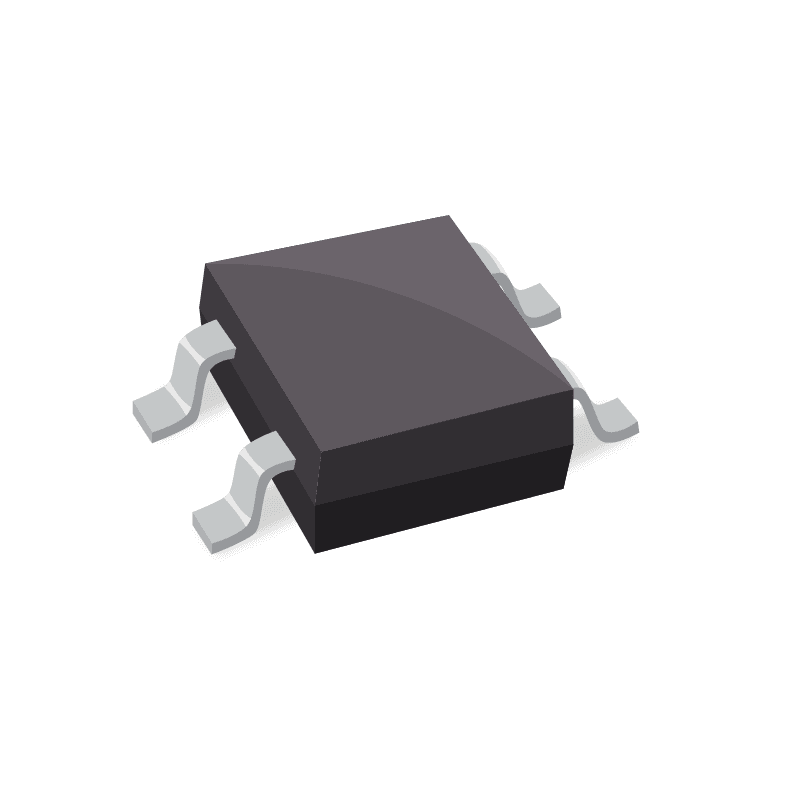

Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin Ultra Small Flat T/R
MPN
PS2911-1-F3-AX
Total Available Quantity
-
Specifications
Case/Package
SOP
Number of Pins
4
Packaging
Tape & Reel
Forward Voltage
1.1V
Forward Current
50mA
Reverse Voltage
6V
Isolation Voltage
2.5kV
Output Voltage
40V
Current Transfer Ratio
400%
Power Dissipation
160mW
Number of Channels
1
Min Operating Temperature
-55°C
Max Operating Temperature
100°C
RoHS
Compliant
Ambient Temperature Range High
100°C
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
40V
Height
2.1mm
Input Current
50mA
Max Collector Current
40mA
Max Input Current
500mA
Max Power Dissipation
120mW
Number of Elements
1
REACH SVHC
No
Reverse Breakdown Voltage
6V
Turn-Off Delay Time
120µs
Turn-On Delay Time
40µs
