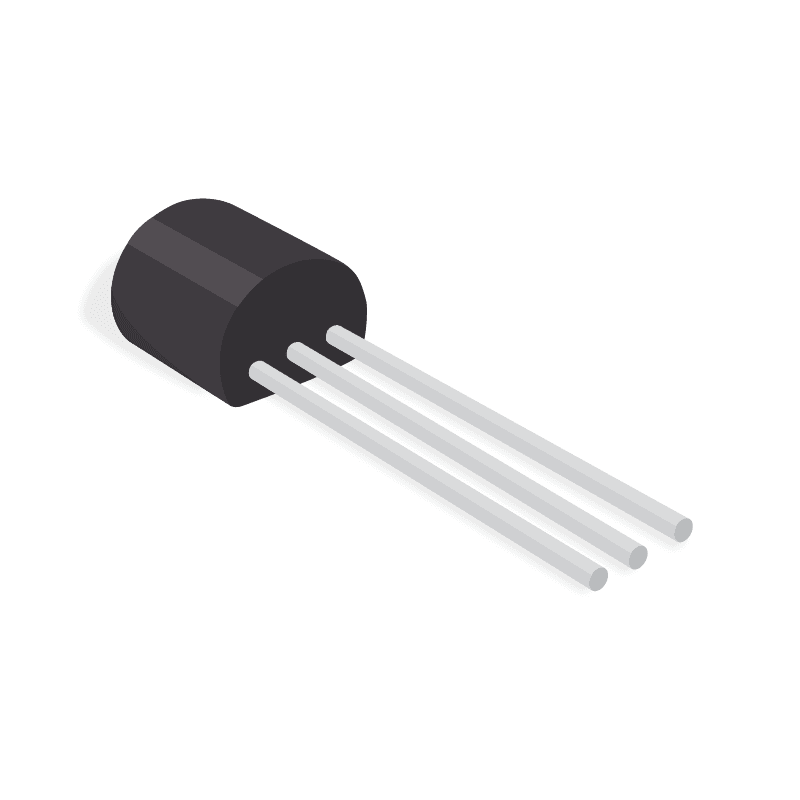

MPN
ZTX457
Total Available Quantity
-
Main Attributes
Continuous Collector Current
500mA
Collector Emitter Saturation Voltage
300mV
Collector Emitter Voltage (VCEO)
300V
Transition Frequency
75MHz
Specifications
Mount
Through Hole
Case/Package
TO-92
Number of Pins
3
Packaging
Bulk
Polarity
NPN
Max Collector Current
500mA
Collector Emitter Breakdown Voltage
300V
Collector Base Voltage (VCBO)
300V
Emitter Base Voltage (VEBO)
5V
Gain Bandwidth Product
75MHz
Min Operating Temperature
-55°C
Max Operating Temperature
200°C
RoHS
Compliant
Current Rating
500mA
Element Configuration
Single
Height
4.01mm
Lead Free
Lead Free
Length
4.77mm
Max Frequency
20MHz
Max Power Dissipation
1W
Radiation Hardening
No
REACH SVHC
No
Voltage Rating (DC)
300V
Weight
453.59237mg
Width
2.41mm
