MPN
DFE252012F-1R5M=P2
Manufacturer
Description

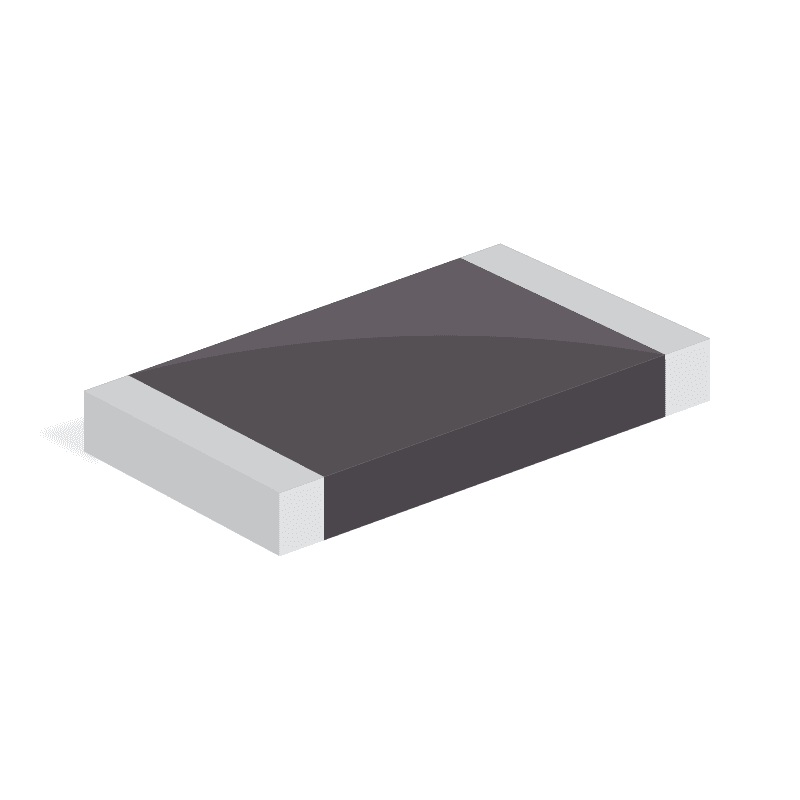

Inductor Power Chip Shielded Wirewound 1.5uH 20% 1MHz Metal 2.7A 0.058Ohm DCR 1008 T/R
MPN
DFE252012F-1R5M=P2
Total Available Quantity
-
Main Attributes
Mount
Surface Mount
Case/Package
1008
Inductance
1.5µH
DC Resistance (DCR)
58mO
Saturation Current
3.8A
Current Rating
2.7A
Specifications
Lifecycle Status
Production
Tolerance
20%
Shielding
Shielded
Core Material
Ferrite
Test Frequency
1MHz
Min Operating Temperature
-40°C
Max Operating Temperature
125°C
RoHS
Compliant
Case Code (Imperial)
1008
Case Code (Metric)
2520
Composition
Wirewound
Height
1.2mm
Height - Seated (Max)
1.1938mm
Inductance Tolerance
20%
Length
2.4892mm
Manufacturer Lifecycle Status
Production
RMS Current (Irms)
2.7A
Schedule B
8504500000
Series Resistance
58mO
Width
2.0066mm
MPN
DFE252012F-1R5M=P2
