MPN
LQH31CN2R2M03L
Manufacturer
Description

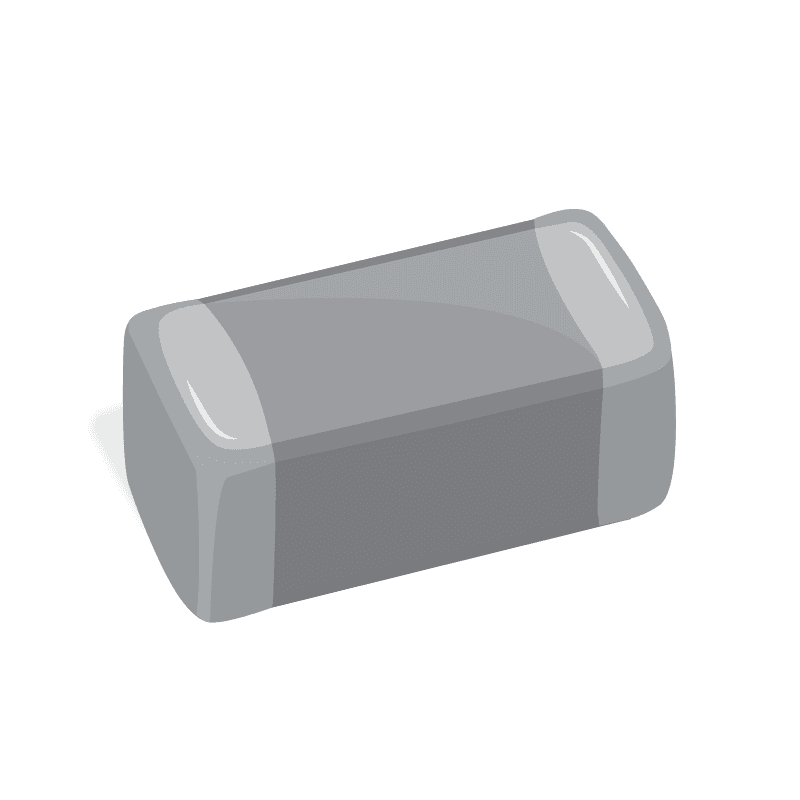

Inductor Power Chip Unshielded Wirewound 2.2uH 20% 1MHz Ferrite 0.43A 0.533Ohm DCR 1206 T/R
MPN
LQH31CN2R2M03L
Total Available Quantity
-
Main Attributes
Mount
Surface Mount
Inductance
2.2µH
Self Resonant Frequency
50MHz
DC Resistance (DCR)
410mO
Current Rating
430mA
Specifications
Series
LQH31
Lifecycle Status
Production
Case/Package
1206
Number of Pins
2
Packaging
Tape & Reel
Tolerance
20%
Shielding
Unshielded
DC Current
430mA
Test Frequency
1MHz
Min Operating Temperature
-40°C
Max Operating Temperature
85°C
RoHS
Compliant
Case Code (Imperial)
1206
Case Code (Metric)
3216
Composition
Wirewound
Core Material
Ferrite
Depth
1.8mm
Height
1.8mm
Height - Seated (Max)
2.0066mm
Inductance Tolerance
20%
Lead Free
Lead Free
Length
3.2mm
Manufacturer Lifecycle Status
Production
Max DC Current
430mA
Military Standard
Radiation Hardening
No
REACH SVHC
No
Resistance
410mO
RMS Current (Irms)
430mA
Schedule B
8504500000
Series Resistance
533mO
Termination
SMD/SMT
Weight
29.001562mg
Width
1.6002mm
