MPN
ATF22V10CQZ-20PU
Manufacturer
Description

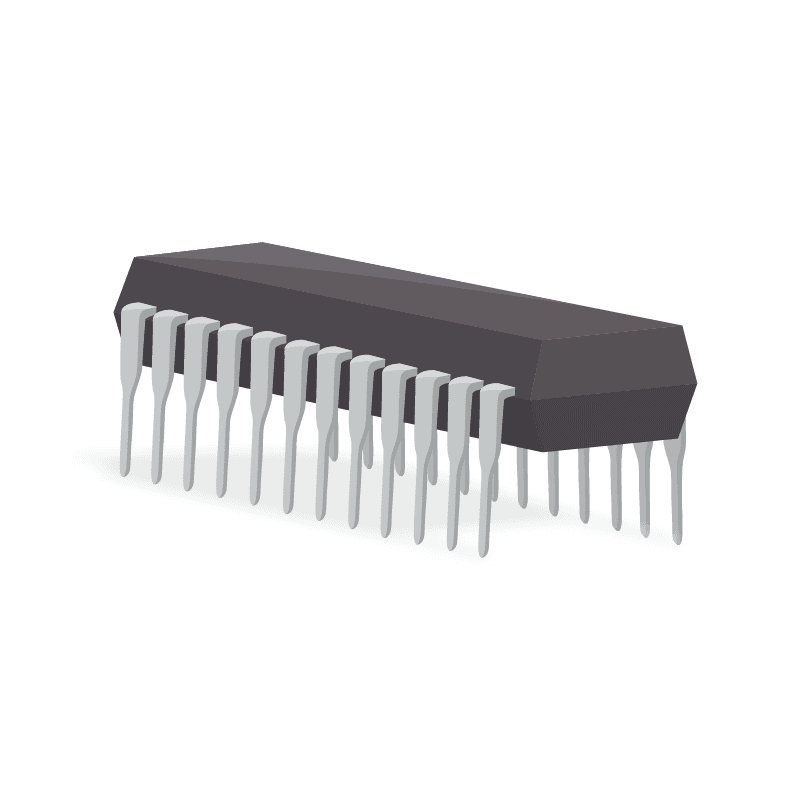

SPLD ATF22V10CQZ Family 500 Gates 10 Macro Cells 50MHz EECMOS Technology 5V 24-Pin PDIP
MPN
ATF22V10CQZ-20PU
Total Available Quantity
-
Specifications
Case/Package
PDIP
Number of Pins
24
Max Frequency
50MHz
Min Supply Voltage
4.5V
Max Supply Voltage
5.5V
Frequency
50MHz
Number of I/Os
10
Access Time
20ns
Ambient Temperature Range High
85°C
Contact Plating
Tin
Height
4.95mm
Lead Free
Lead Free
Length
32.3mm
Lifecycle Status
Production
Max Operating Temperature
85°C
Max Supply Current
80mA
Min Operating Temperature
-40°C
Mount
Through Hole
Nominal Supply Current
40mA
Number of Gates
500
Number of Inputs
12
Number of Macrocells
10
Number of Outputs
10
Operating Supply Current
80mA
Operating Supply Voltage
5V
Propagation Delay
12ns
Radiation Hardening
No
REACH SVHC
No
RoHS
Compliant
Schedule B
8542310000
Speed Grade
20
Turn-On Delay Time
20ns
Weight
3.740011g
Width
7.11mm
MPN
ATF22V10CQZ-20PU
