MPN
DSEI20-12A
Manufacturer
Description

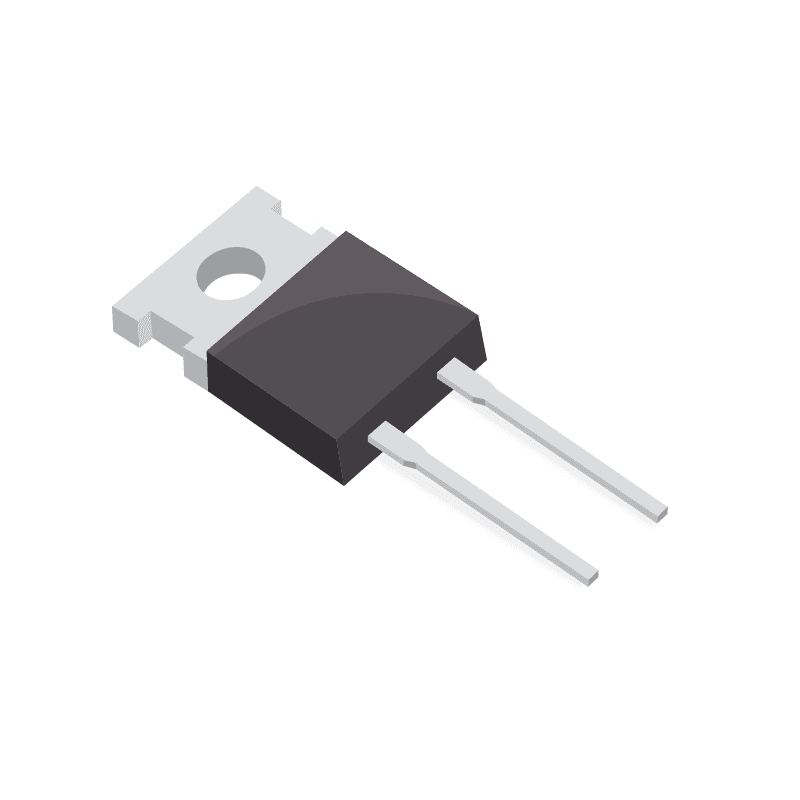

Diode Ultra Fast Recovery Rectifier 1.2KV 17A 2-Pin (2+Tab) TO-220AC
MPN
DSEI20-12A
Total Available Quantity
-
Main Attributes
Forward Voltage
2.15V
Max Surge Current
140A
Average Rectified Current
17A
Reverse Recovery Time
60ns
Max Junction Temperature (Tj)
150°C
Max Repetitive Reverse Voltage (Vrrm)
1.2kV
Specifications
Mount
Through Hole
Case/Package
TO-220
Number of Pins
2
Packaging
Bulk
Forward Current
17A
Reverse Voltage
1.2kV
Peak Reverse Current
250µA
Recovery Time
60ns
Min Operating Temperature
-40°C
Max Operating Temperature
150°C
Output Current
17A
RoHS
Compliant
Current Rating
17A
Element Configuration
Single
Height
9.66mm
Lead Free
Lead Free
Length
10.66mm
Max Forward Surge Current (Ifsm)
130A
Max Reverse Voltage (DC)
1.2kV
Peak Non-Repetitive Surge Current
140A
Polarity
Standard
Radiation Hardening
No
REACH SVHC
No
Voltage Rating (DC)
1.2kV
Width
4.82mm
MPN
DSEI20-12A
Total Available Quantity
-
