MPN
TPSE686M020R0150
Manufacturer
Description

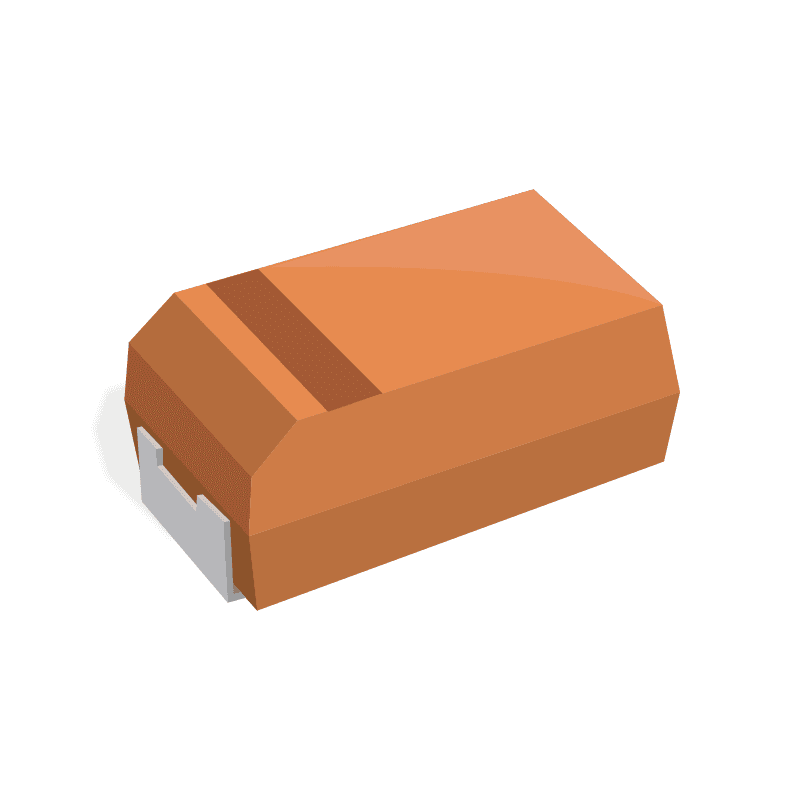

Cap Tant Solid 68uF 20V E CASE 20% (7.3 X 4.3 X 4.1mm) SMD 7343-43 0.15 Ohm 125AHA T/R
MPN
TPSE686M020R0150
Total Available Quantity
-
Main Attributes
Mount
PCB, Surface Mount
Capacitance
68µF
Tolerance
20%
ESR (Equivalent Series Resistance)
150mΩ
Voltage Rating (DC)
20V
Specifications
Lifecycle Status
Production
Case/Package
2917
Number of Pins
2
Packaging
Tape & Reel
Leakage Current
13.6µA
Voltage Rating
20V
Dissipation Factor
6%
Height - Seated (Max)
4.2926mm
Min Operating Temperature
-55°C
Max Operating Temperature
125°C
RoHS
Compliant
Case Code (Imperial)
2917
Case Code (Metric)
7343
Depth
4.3mm
Dielectric Material
Tantalum
Features
General Purpose
Height
4.1mm
Lead Free
Lead Free
Lead Pitch
4.4mm
Length
7.3mm
Polarity
Polar
Radiation Hardening
No
REACH SVHC
No
Ripple Current
420µA
Schedule B
8532210050
Termination
SMD/SMT
Voltage
20V
Weight
670.01263mg
Width
4.2926mm
