STL76DN4LF7AG
- Description
- Transistor MOSFET Array Dual N-CH 40V 40A 8-Pin PowerFLAT T/R
- Gate to Source Voltage (Vgs)
- 20V
- Drain to Source Voltage (Vdss)
- 40V
- Continuous Drain Current (ID)
- 40A
- Drain to Source Resistance
- 12mΩ
- Input Capacitance
- 956pF
Quantity
1,900 AvailableNeed this part?
Let us do the sourcing. Even if it's not available now, our team can track it down and tailor a solution just for you.
Let us do the sourcing. Even if it's not available now, our team can track it down and tailor a solution just for you.
Fusion-Tested. Quality Guaranteed.
- Dual N-channel MOSFET array (2 elements)
- 40V drain-to-source voltage
- 40A continuous drain current
- 9mΩ maximum Rds(on)
- AEC-Q101 automotive qualified
- -55°C to 175°C operating range

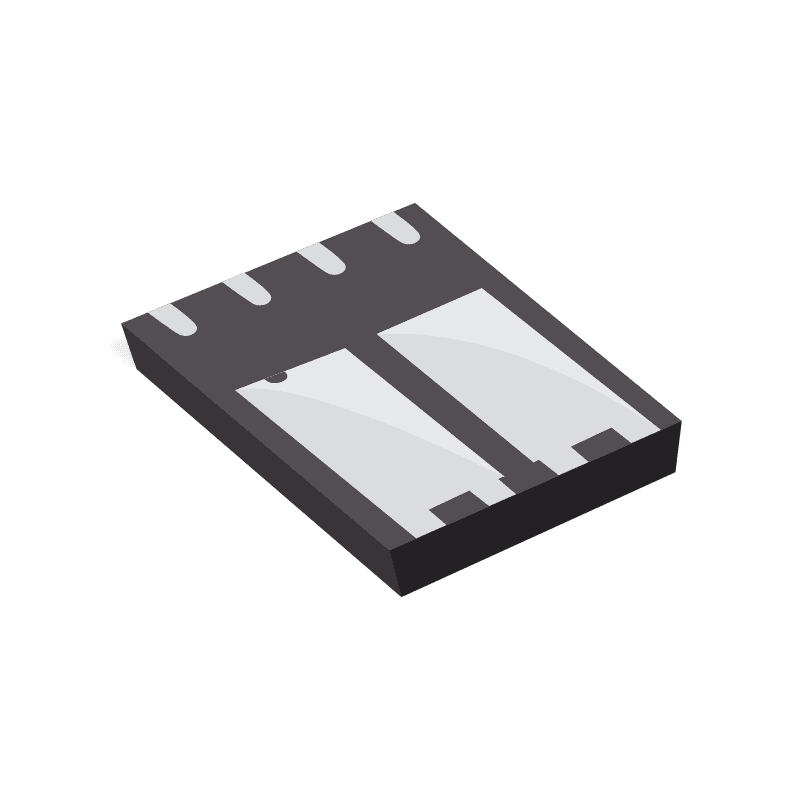

The STMicroelectronics STL76DN4LF7AG is a dual N-channel MOSFET array in an 8-pin PowerVDFN surface-mount package. Each element is rated for 40V drain-to-source and 40A continuous drain current, with a maximum on-resistance of 9mΩ. The device is AEC-Q101 qualified and operates from -55°C to 175°C.
This dual N-channel array is used in DC-DC converters, motor drives, load switches, and power-management stages where two low-Rds(on) switches are needed in one compact package. Its automotive qualification and wide temperature range suit automotive and industrial power designers.
