MPN
L7806CV-DG
Manufacturer
Description

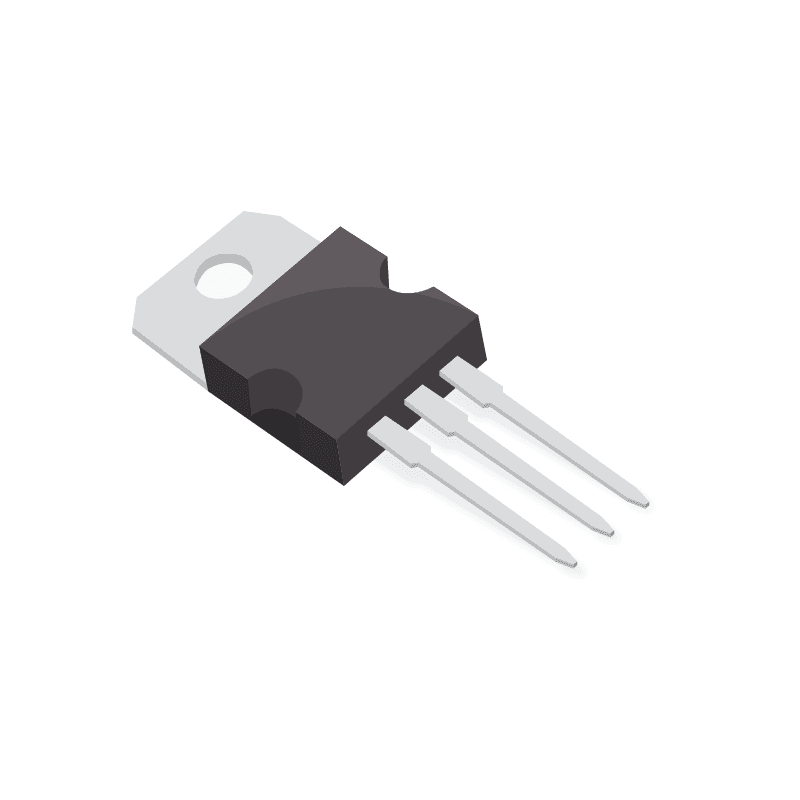

L7806 Series 6 V 1.5 A Fixed Positive Voltage Regulator Ics - TO-220-3
MPN
L7806CV-DG
Total Available Quantity
-
Main Attributes
Max Output Current
1.5A
Dropout Voltage
2V
Quiescent Current
8mA
Output Voltage
6V
Power Supply Rejection Ratio (PSRR)
59dB
Specifications
Lifecycle Status
Production
Mount
Through Hole
Case/Package
TO-220
Number of Pins
3
Packaging
Tube
Package Quantity
50
Number of Outputs
1
Min Input Voltage
8V
Max Input Voltage
35V
Min Operating Temperature
-40°C
Max Operating Temperature
125°C
Output Current
1.5A
RoHS
Compliant
Height
4.6mm
Lead Free
Lead Free
Length
10.4mm
Number of Channels
1
Number of Regulators
1
Output Type
Fixed
Polarity
Positive
Schedule B
8542390000
Weight
6.000006g
Width
14.9mm
MPN
L7806CV-DG
