08055C104KAT2A

• 100nF Capacitance with ±10% Tolerance
• 50V DC Voltage Rating
• X7R Ceramic dielectric, 2.5% Dissipation Factor
• 0805 Imperial / 2012 Metric case, 2.01mm X 1.24mm
• -55°C to 125°C Operating Temperature Range
• 2-Terminal SMD/SMT construction, Lead Free and RoHS Compliant

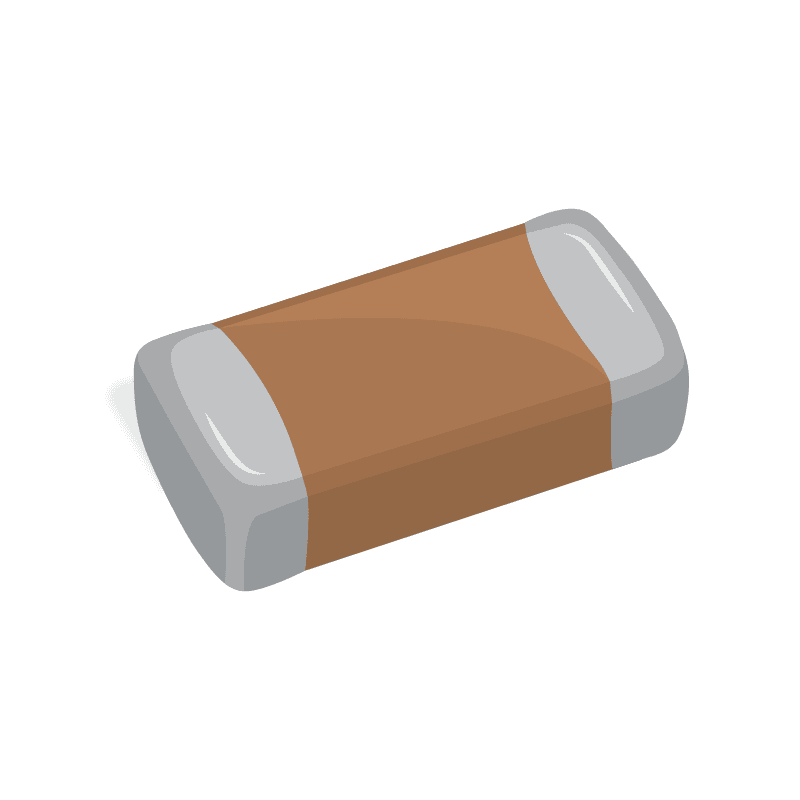

The 08055C104KAT2A is a Kyocera AVX surface-mount multilayer Ceramic Capacitor rated at 100nF with a 50V rating and ±10% tolerance. It uses an X7R ceramic dielectric in an 0805 imperial (2012 metric) case measuring 2.01mm by 1.24mm. The 08055C104KAT2A has a 2.5% dissipation factor, operates from -55°C to 125°C, and is lead free, RoHS compliant and supplied on tape and reel.

A 100nF X7R capacitor is the default decoupling part for integrated circuit supply pins, and in the larger 0805 case it is also used for filtering, snubbing and coupling where more mechanical robustness or higher voltage margin is wanted than an 0402 provides. The 50V rating leaves substantial derating headroom on 5V, 12V and 24V rails, which limits the capacitance loss ceramics suffer under DC bias. The X7R dielectric holds value across the -55°C to 125°C range specified, making the part appropriate for industrial and under-hood-adjacent environments. It is a high-volume commodity line item for contract manufacturers and OEM procurement teams.
