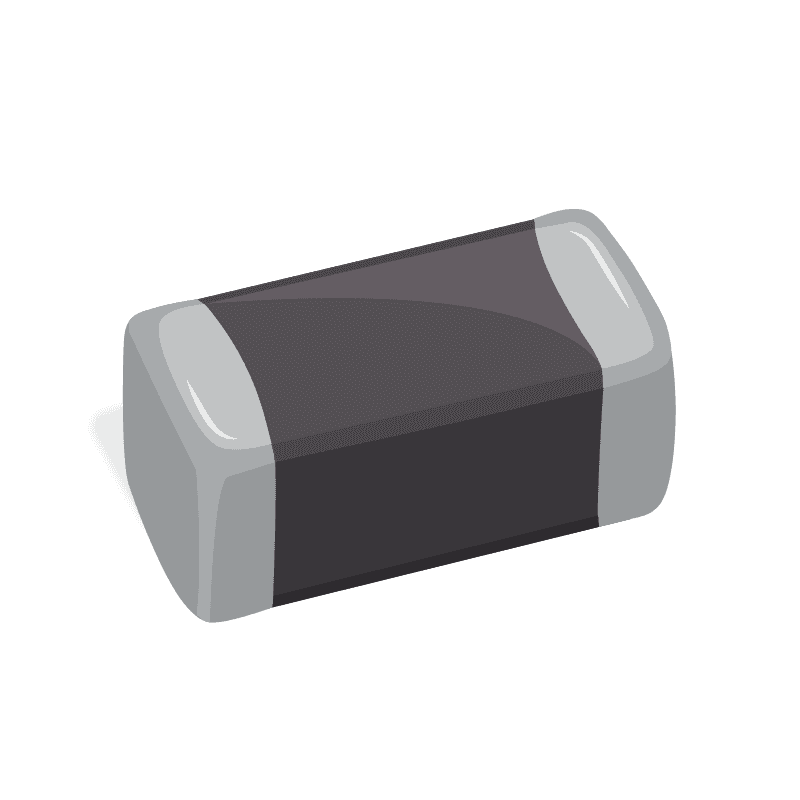

JMK063BC6105MP-F
Multilayer Ceramic Capacitors (High dielectric type), 6.3V, 1 uF, ± 20 %, 0201, X6S, RoHS
Let us do the sourcing. Even if it's not available now, our team can track it down and tailor a solution just for you.
Fusion-Tested. Quality Guaranteed.
Combining advanced technology and proprietary data with expert engineering and quality teams to maintain consistent testing standards across all facilities.
Full Specifications
- Capacitance
- 1µF
- Tolerance
- 20%
- Voltage Rating (DC)
- 6.3V
- Series
- M
- Case/Package
- 0201
- Packaging
- Tape & Reel
- Package Quantity
- 15,000
- Min Operating Temperature
- -55°C
- Max Operating Temperature
- -55°C
- RoHS
- Compliant
- Height
- 390µm
- Lead Free
- Lead Free
- Material
- Ceramic
Key Features
- 1µF Capacitance with ±20% Tolerance
- 6.3V DC Voltage Rating
- X6S High-Dielectric Ceramic Formulation
- 0201 Chip case, 390µm Height for Low-Profile Assemblies
- -55°C Minimum Operating Temperature
- Lead Free and RoHS compliant, Tape and Reel of 15, 000
About this Product
The Taiyo Yuden JMK063BC6105MP-F is a 1µF multilayer Ceramic Capacitor rated at 6.3V DC with a ±20% capacitance tolerance. It uses an X6S high-dielectric ceramic and is supplied in an 0201 chip case just 390µm high, shipped on tape and reel in quantities of 15, 000. The attribute data gives a -55°C minimum operating temperature. JMK063BC6105MP-F is lead free and RoHS compliant.
Common Uses
What is the Taiyo Yuden JMK063BC6105MP-F 1µF 6.3V X6S 0201 Ceramic Capacitor Used For?
High-dielectric class II Ceramic Capacitors like X6S trade capacitance stability over temperature and applied voltage for very high capacitance in a small case, which is the right compromise for decoupling and bulk filtering rather than precision timing or filter networks. Achieving 1µF in an 0201 case is notable because it frees board area on densely populated boards. Capacitors in this class are placed by the hundreds near processor, memory, and power management supply pins in smartphones, wearables, camera modules, SSDs, and compact IoT hardware. Because usage is per-board volume rather than one per design, buyers are high-volume OEMs and contract manufacturers for whom reel availability and price per thousand drive the sourcing decision.
