MT25QL01GBBB8E12-0SIT
- Description
- NOR Flash SPI 1Gb 128M x 8 TPBGA-24
- Density
- 1Gb
- Memory Size
- 128MB
- Interface
- SPI
- Access Time
- 6ns
- Page Size
- 256B
- Datasheet
Quantity
5,000 AvailableLet us do the sourcing. Even if it's not available now, our team can track it down and tailor a solution just for you.
- 1Gb NOR flash density (128MB)
- SPI interface with Quad I/O
- 2.7V to 3.6V supply voltage
- 133M Hz maximum frequency

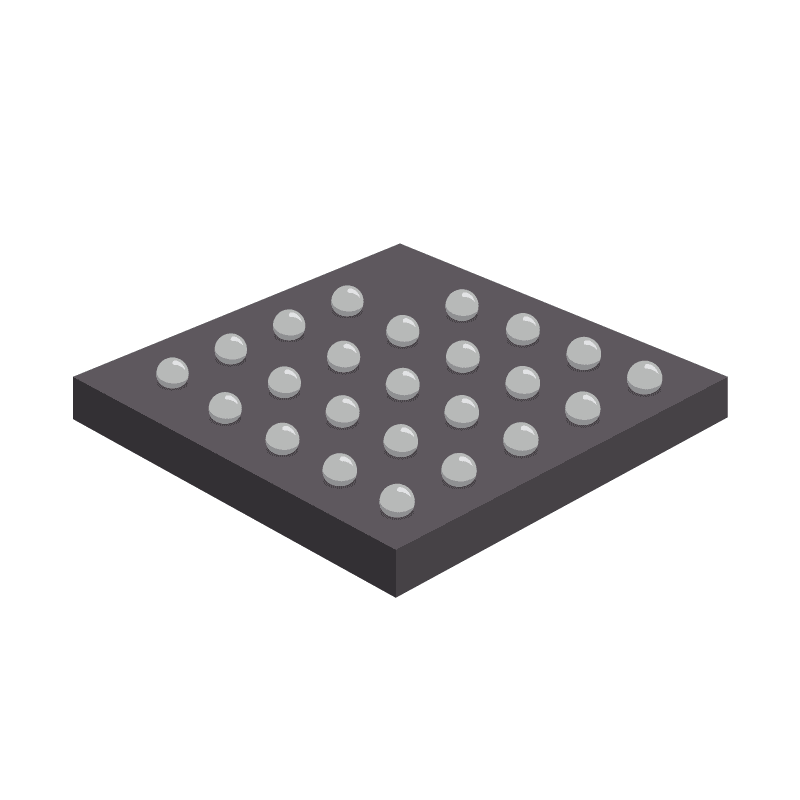

- 24-ball TPBGA package
- -40°C to 85°C operating range
The Micron MT25QL01GBBB8E12-0SIT is a serial NOR flash memory with 1Gb of density, equivalent to 128MB, and an SPI interface with Quad I/O support. It operates from a 2.7V to 3.6V supply at up to 133M Hz with a 6ns access time in a 24-ball TPBGA package. NOR flash provides fast, reliable random reads for code storage.
As NOR flash, this device is used for code storage and execute-in-place boot firmware where fast random reads matter. Its higher density suits designs storing larger firmware images. Typical applications include industrial controllers, networking equipment, and automotive and IoT systems.
Fusion’s in-house quality hubs and Prosemi testing facility are fully certified to meet critical industry standards for electronic component inspection and testing.
