MPN
EE-SX1046
Manufacturer
Description

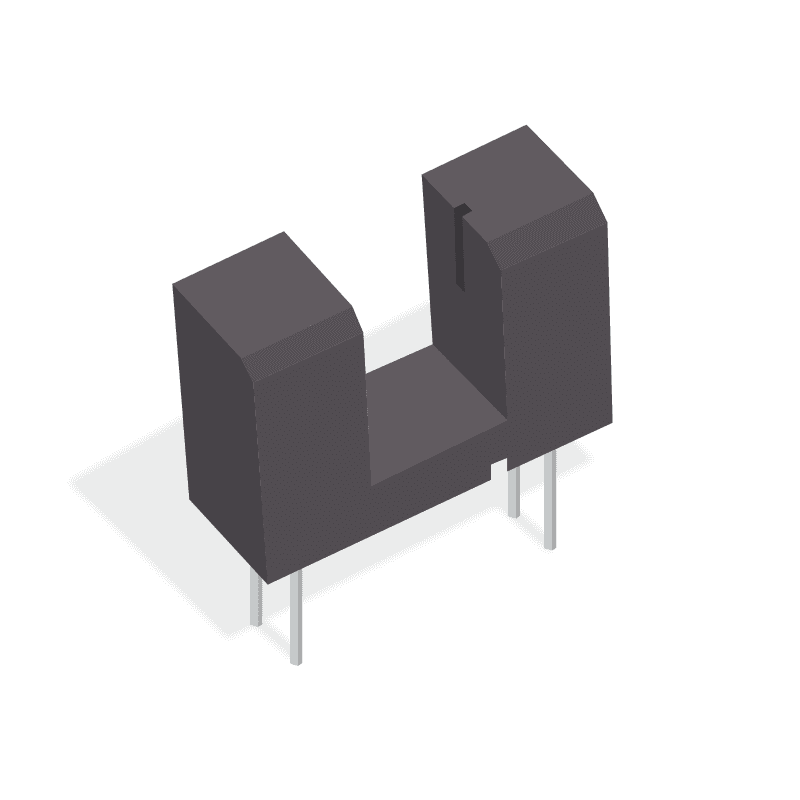

Optical Switches, Transmissive, Phototransistor Output PHOTOTRANSISTOR
MPN
EE-SX1046
Total Available Quantity
-
Specifications
Lifecycle Status
Production
Mount
PCB, Through Hole
Number of Pins
4
Packaging
Bulk
Collector Emitter Voltage (VCEO)
30V
Collector Emitter Breakdown Voltage
30V
Max Collector Current
20mA
Rise Time
4µs
Fall Time
4µs
Wavelength
920nm
Power Dissipation
100mW
Min Operating Temperature
-25°C
Max Operating Temperature
85°C
Output Current
20mA
RoHS
Compliant
Ambient Temperature Range High
85°C
Forward Current
50mA
Forward Voltage
1.2V
Height
6.5mm
Lead Free
Lead Free
Length
10mm
Max Output Current
20mA
Max Power Dissipation
100mW
Number of Channels
1
Number of Elements
1
Output Configuration
Phototransistor
Radiation Hardening
No
REACH SVHC
Unknown
Response Time
4µs
Reverse Breakdown Voltage
4V
Reverse Voltage (DC)
4V
Schedule B
8541408000
Sensing Distance
2.9972mm
Termination
Solder
Width
500µm
