KLM8G1GETF-B041006
- Description
- NAND Flash eMMC 5.1 8GB FBGA-153
- Density
- 64Gb
- Memory Size
- 8GB
- Interface
- eMMC 5.1
- Speed - Read
- 330MB/s
- Speed - Write
- 50MB/s
Quantity
Let us do the sourcing. Even if it's not available now, our team can track it down and tailor a solution just for you.
- 8GB managed NAND storage
- e-MMC 5.1 interface
- 153-ball FBGA package
- Dual 1.8V and 3.3V operation
- Read up to 330MB/s, write up to 50MB/s
- -40°C to 85°C operating range

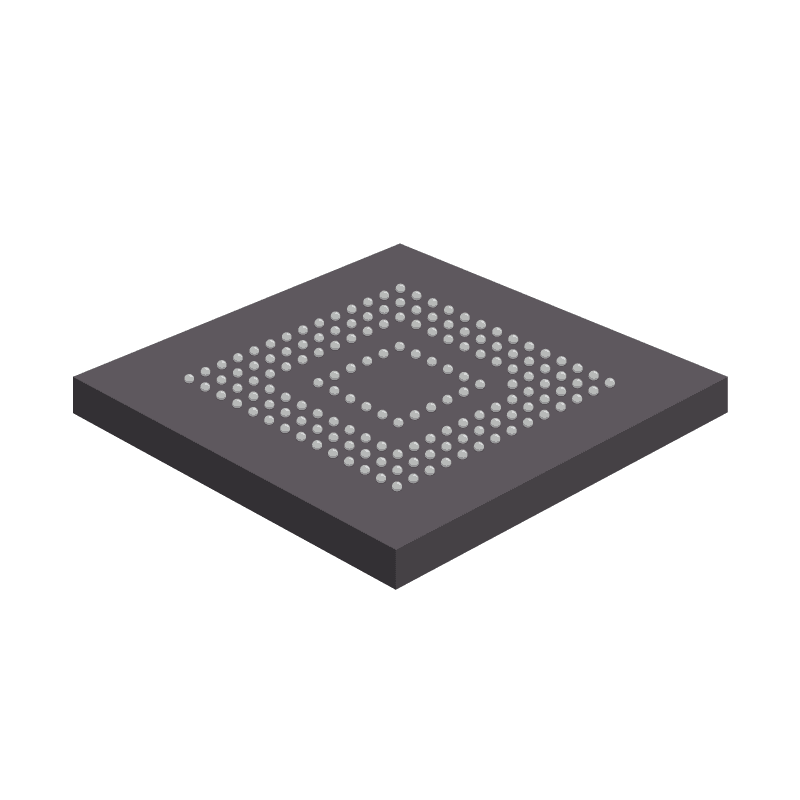

The Samsung KLM8G1GETF-B041006 is an 8GB e-MMC 5.1 managed NAND device in a 153-ball FBGA package. It integrates NAND flash with an on-die controller and supports dual 1.8V and 3.3V operation with a maximum clock of 200M Hz. It delivers read speeds up to 330MB/s and write speeds up to 50MB/s, and carries an obsolete lifecycle status.
As managed NAND with an integrated controller, this eMMC is used as embedded boot and application storage in consumer and industrial devices. The controller offloads flash management from the host processor. Typical applications include set-top boxes, networking equipment, and embedded systems.
