05-50148-00

• Advanced SAS3808 Processor
• PCIe 4.0 x8 System Interface
• Supports Up to 2 NVMe and 2 SAS/SATA Devices
• JBOD Mode for Flexible Storage Configuration
• RAID Levels 0 and 1 for Enhanced Data Protection

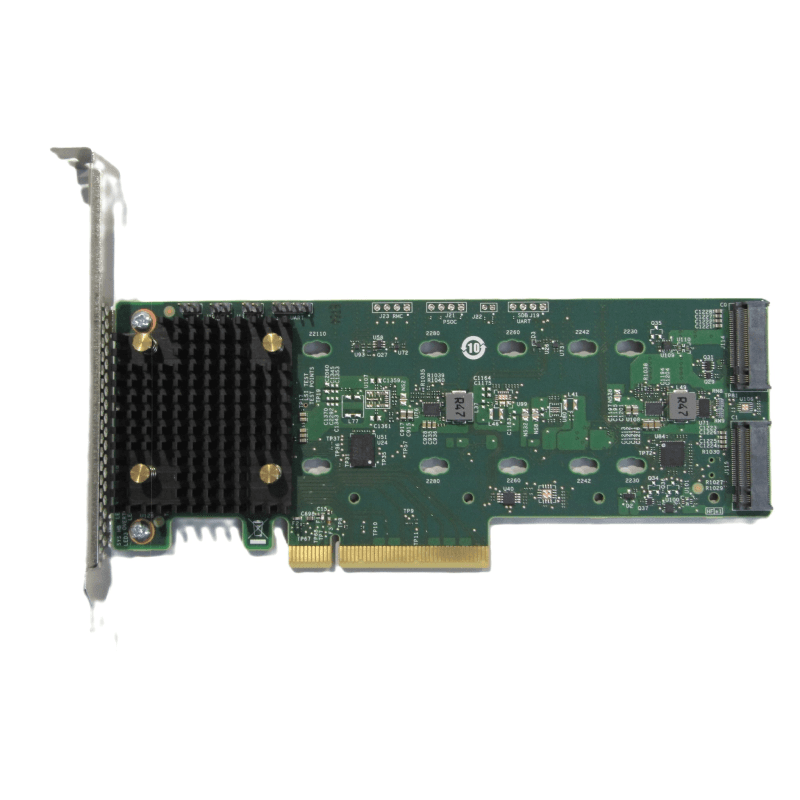

The Broadcom MegaRAID 9540-2M2 is a powerful server-class RAID controller designed to enhance data storage performance and reliability. Featuring the advanced SAS3808 processor, this low-profile card supports both NVMe and SAS/SATA devices, making it an ideal choice for high-demand server environments. With a robust design and support for multiple RAID levels, the MegaRAID 9540-2M2 ensures optimal data protection and management for your critical applications.

The MegaRAID 9540-2M2; Single Kit is designed for server applications, providing reliable RAID functionality with support for SAS and SATA devices. It features a low-profile form factor, ideal for space-constrained environments, and utilizes a PCIe 4.0 x8 interface for fast data transfer. This RAID controller supports up to four devices, including two NVMe and two SAS/SATA drives, enabling efficient management of storage resources. With advanced features like JBOD mode and multiple RAID levels (0 and 1), it ensures optimal performance and data protection. Additionally, it boasts a high MTBF of over 5,000,000 hours, making it a dependable choice for enterprise environments.
